Shop All Vacuum Pump Parts
Piab

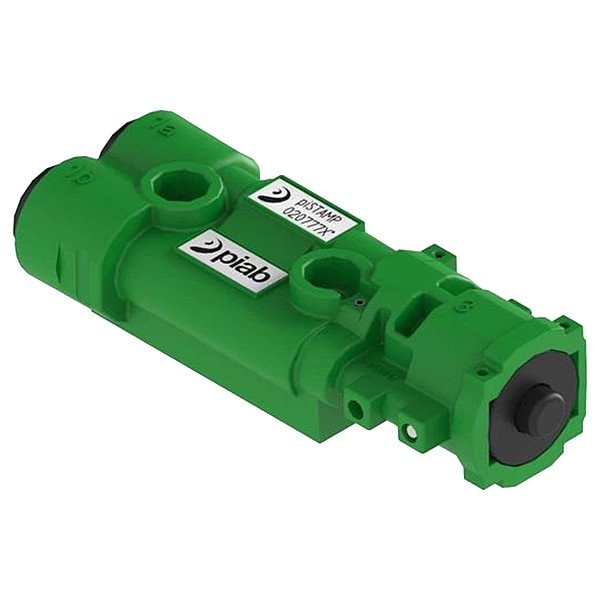

Vacuum Generator, 22 mm Overall H
Mfr # 02.08.766
Zoro # G010064709
product price: $171.99
/ea
Free Shipping & Returns
$171.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Weight 1.73 oz
- Overall Width 80.2 mm
- Overall Height 22 mm
- Maximum Supply Pressure 101.5 psi
- Standards RoHS Compliant
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Piab
- MFR # 02.08.766
- Zoro # G010064709
- Country of Origin Singapore
- Category Vacuum Pump Parts
Dimensions
Overall Width | 80.2 mm |
Overall Height | 22 mm |
Overall Depth | 32.4 mm |
Pressure Port Size | 8 mm |
Details
Item | Vacuum Generator |
Weight | 1.73 oz |
Maximum Supply Pressure | 101.5 psi |
Standards | RoHS Compliant |
Pressure Port Gender | Female |
Minimum Flow Rate | 0 scfm |
Minimum Supply Pressure | 43.5 psi |
Air Consumption | 2.16 scfm |
Pressure Port Type | Tube |
Cartridge Type | (2) STX0785 |
Maximum Operating Temperature | 122 Degrees F |
Maximum Flow Rate | 1 scfm |
Minimum Operating Temperature | 32 Degrees F |
Maximum Vacuum Pressure | 25.1 in Hg |
Series | piSTAMP |
Description
Item Vacuum Generator, Air Consumption 2.16 scfm, Cartridge Type (2) STX0785, Maximum Flow Rate 1 scfm, Maximum Operating Temperature 122 Degrees F, Maximum Supply Pressure 101.5 psi, Maximum Vacuum Pressure 25.1 in Hg, Minimum Flow Rate 0 scfm, Minimum Operating Temperature 32 Degrees F, Minimum Supply Pressure 43.5 psi, Overall Depth 32.4 mm, Overall Height 22 mm, Overall Width 80.2 mm, Pressure Port Gender Female, Pressure Port Size 8 mm, Pressure Port Type Tube, Series piSTAMP
