Number of PoE+ (RJ-45) Ports
|
1
|
|
Expansion Slot Type
|
SFP
|
|
Form Factor
|
Wall Mountable, Desktop, Rack-mountable, Rail-mountable
|
|
Network Technology
|
10/100/1000Base-T
|
|
Number of Total Expansion Slots
|
1
|
|
Total Number of Ports
|
1
|
|
Product Type
|
Transceiver/Media Converter
|
|
Product Name
|

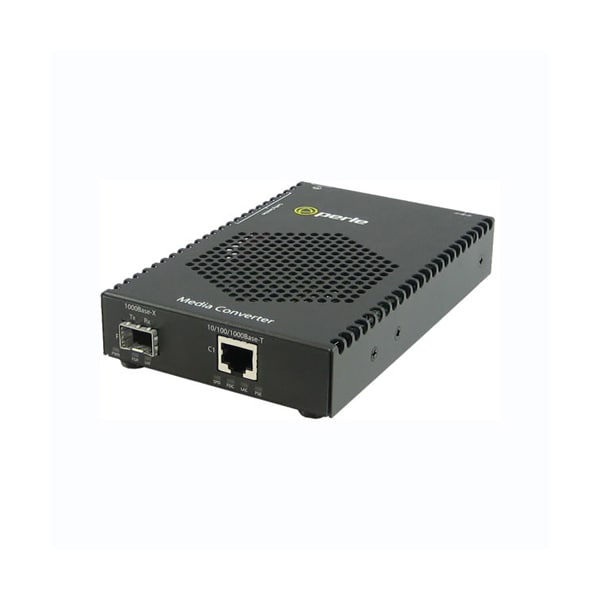

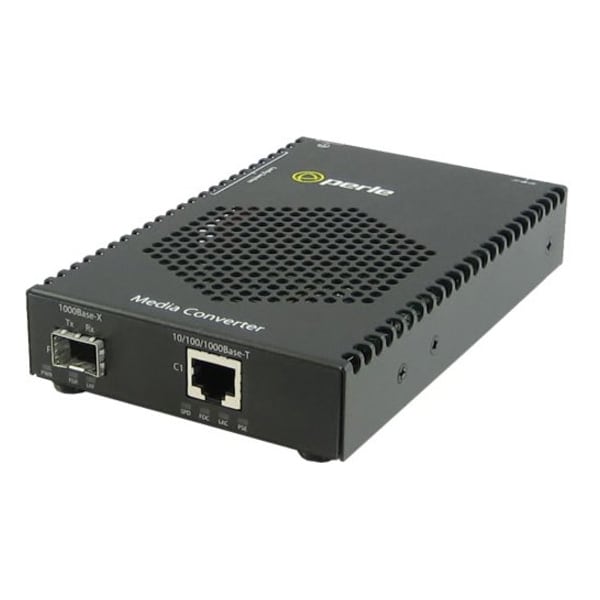

S-1110PP-SFP-XT Media Converter
|
|
Number of SFP Slots
|
1
|
|
Media Type Supported
|
Twisted Pair
|
|
Weight (Approximate)
|
15.87 oz
|
|
Environmentally Friendly
|
Yes
|
|
Input voltage
|
57 V DC
|
|
Certifications & Standards
|
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab Emissions: FCC Part 15 Class A,EN55022 Class A,CISPR 22 Class A,EN61000-3-2 Immunity: EN55024 Electrical Safety: UL 60950-1,EN60950,CE Other: ECCN: 5A991A,HTSUS Number: 8517.62.0050
|
|
Filtering
|
1024 MAC Addresses
|
|
Operating temperature
|
-40 C to 75 C (-40 F to 167 F)
|
|
Loopback
|
The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter is taken off the interface.
|
|
Fiber link on / Receive activity ( LKF 1/2 )
|
This green LED is operational only when power is applied. The LED will blink along with transmit/receive data on the fiber port; If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED will blink at a rate of once every 2 seconds until the condition is cleared.
|
|
Emissions
|
FCC Part 15 Class A, EN55022 Class A
|
|
Buffer
|
1000 Kbits frame buffer memory
|
|
Auto-Negotiation (802.3u)
|
Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 10/100/1000Base-T interface. It is set to advertise full duplex, half duplex, pause and remote fault capabilities; Disabled- The media converter sets the port according to the position of the speed and duplex switches.
|
|
Heat Output ( BTU/HR )
|
20.5
|
|
Power ( PWR )
|
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when either fiber port is in Loopback test mode. The LED will blink quickly if there is a hardware failure where the reason code can be identified through a combination of FDF,LKF, FDC and PSE indicator LEDs
|
|
Magnetic Isolation
|
1.5kv
|
|
Auto-MDIX (Internal Strap)
|
If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default) - Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled - If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
|
|
100/1000
|
This multi-color LED is operational only when power is applied. The LED is green when the speed of the copper ethernet port is running at 1000 Mbps. The LED is yellow when the speed of the copper Ethernet port is running at 100 Mbps. The LED is off when in 10 Mbps.
|
|
Fiber Negotiation
|
Up:The Media Converter will negotiate Ethernet parameters on the fiber connection. This will ensure that the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise 1000Mbps, Full and Half Duplex, no Pause; Down:The Media Converter Module's fiber will be fixed to 1000Mbps, Full Duplex.
|
|
Power Connector
|
2-Pin pluggable terminal block
|
|
Fiber Fault Alert
|
The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)
|
|
10/100/1000Base-T
|
RJ45 connector; 2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100; 4 pair CAT5 UTP cable for Gigabit.
|
|
PoE Power Options ( Internal Straps )
|
Set to Alternative A ( default ): Pins 3,6 Neg, Pins 1,2 Pos; Set to Alternative B: Pins 7,8 Neg, Pins 4,5 Pos; Set to Legacy Pre-Standard: Pins 7,8 Pos, Pins 4,5 Neg
|
|
Speed Copper
|
100 (Default); 10
|
|
Storage Humidity
|
5% to 95% non-condensing
|
|
Fixed Fiber
|
Dual multimode or single mode ( Duplex ) fiber - SC, ST; Single strand fiber ( Simplex ) - SC; LC - obtained by inserting an SFP ( LC ) in an SFP slot model
|
|
PD Power Reset
|
This is a technique to perform a power reset on a PD device(s) attached; When enabled ( down ), the media converter will upon loss of link on any fiber port, turn off PSE output power to the PD device(s) for 2 seconds then turn the power back on. The power remains on until any fiber link transitions from up to down again; With Passthrough enabled ( Link Mode enabled and Fiber Auto-Negotiation enabled ) , a loss of link on the fiber resulting from a loss of link on the copper, a PD Power Reset till still occur; When PD Power Reset disabled, loss of fiber link has no effect on PSE power to the PD device(s).
|
|
PoE Options
|
Alternative A ( power on pins 1,2 and 3,6 ); Alternative B ( power on pins 4,5 and 7,8 ); Legacy PoE ( IE wireless access points ) - ( reverse polarity on pins 4,5 and 7,8 ); Legacy large capacitor detect ( pins 4,5 and 7,8 )
|
|
Copper Duplex ( FDC 1/2 )
|
This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is operational in full duplex mode. The LED is off when in half duplex
|
|
Storage temperature
|
-40 C to 85 C (-40 F to 185 F)
|
|
Copper link on / Receive activity ( LKC 1/2 )
|
This green LED is operational only when power is applied. The LED will blink along with transmit/receive data on the 10/100/1000 UTP port; If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED will blink at a rate of once every 2 seconds until the condition is cleared.
|
|
PSE Status ( PSE 1/2 )
|
This LED will signify the status of the PSE function. Using multi-color and blinking the unit will show the following status for the PSE; GREEN - Solid: The PSE has successfully detected a compliant PD and is applying power over the UTP (for legacy pin out simply show active power when applied); YELLOW - Solid: The PSE is not active. This means the PSE has been configured to provide power, but the PD is : Not connected; Has not detected a compliant PD and is not applying power; PSE has turned off power for Reset function; OFF - PSE function switch disabled; RED - Blinking: Error Conditions; Capacitance too High - 1 blink; Resistance too Low or short circuit - 2 blinks; Resistance too high or open circuit - 3 blinks
|
|
DC Power Requirements
|
PoE models: 46 - 57 vDC; PoE+ models: 52 - 57 vDC
|
|
Electrical Safety
|
UL 60950-1
|
|
PSE Power
|
Settable for each UTP port available; When enabled (UP), the media converter will perform a Power Sourcing Equipment (PSE) function as per IEEE802.3af or 802.3at standards (relevant model); Default is "enabled"
|
|
Power Consumption
|
3.5 Watts
|
|
Fiber Duplex ( FDF 1/2 )
|
This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-X link is operational in full duplex mode. The LED is off when in half duplex. If the Auto-Neg switch is turned off, this LED will always be on
|
|
Power Over Ethernet (PSE)
|
PoE models: maximum to 15.4 watts; PoE+ models: up to 30 watts
|
|
Immunity
|
EN55024
|
|
Operating Humidity
|
5% to 90% non-condensing
|
|
Operating Altitude
|
Up to 3,048 meters (10,000 feet)
|
|
Small Form Factor Pluggable ( SFP ) slot
|
Empty SFP slot forCiscoand otherindustry standard SFPs; SFP slot models: Empty slot for 1000Base-X or 100Base-XSFP modules supplied by Perle,Ciscoor other manufacturers of MSA compliant SFPs; Hot insertion and removable ( hot swappable ).
|
|
Duplex Copper
|
Full (Default); Half
|
