Shop All Media Converters & Data Adapter Kits
Perle Systems

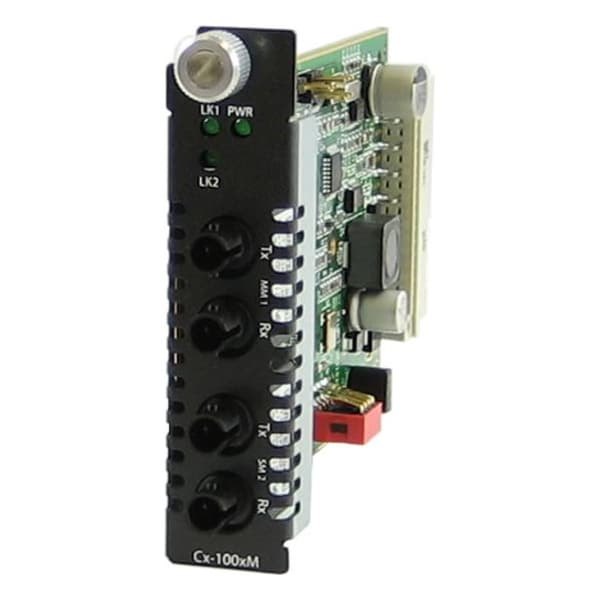

Cm-1000Mm-S2St10 Media Convert
Mfr # 05062240
Zoro # G4398234
Free Shipping & Returns
$1,112.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- 1000Base-X Multimode dual ST to single dual ST fiber connector model; Available in SC, ST and LC connector models
- Fiber Fault Alert Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them; Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface.
- Auto-Negotiation Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through.
- Edge Connecter 32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
- Emissions FCC Part 15 Class A, EN55022 Class A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Perle Systems
- MFR # 05062240
- Zoro # G4398234
- UPC # 734660622400
- Country of Origin Canada
- Category Media Converters & Data Adapter Kits
Details
1000Base-X | Multimode dual ST to single dual ST fiber connector model; Available in SC, ST and LC connector models |
Fiber Fault Alert | Enabled - (default up)- If the media converter detects a loss of fiber signal on a fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the remote fiber link partner that an error condition exists on the fiber connection. The setting of this switch applies to both fiber ports; Disabled: The media converter will not monitor for fiber fault or generate them; Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface. |
Auto-Negotiation | Auto (default up)- Fiber Negotiation is performed for both fiber ports. Full and half duplex will be advertised. Pause will advertise support for Symmetrical and Asymmetrical Pause. Pause frame will not be acted upon or generated but will be passed through; Off- Negotiation on both fiber ports will be disabled. Settings of Link mode and Fiber fault alert will be determined by those switch settings. Pause frames will not be acted upon or generated but will continue to be passed through. |
Edge Connecter | 32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power |
Emissions | FCC Part 15 Class A, EN55022 Class A |
Heat Output ( BTU/HR ) | 8.53 |
Electrical Safety | UL 60950-1 |
Immunity | EN55024 |
Card insertion and removal | Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver. |
Power / TST | This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode. |
Fiber link 2 on / Receive activity (LK2) | This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received. |
Operating Altitude | Up to 3,048 meters (10,000 feet) |
Remote Loopback #2 | The media converter can perform a loopback on the link #2 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface. |
Operating Humidity | 5% to 90% non-condensing |
Operating temperature | 0° C to 50° C (32° F to 122° F) |
Remote Loopback #1 | The media converter can perform a loopback on the link #1 fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface. |
Storage Humidity | 5% to 95% non-condensing |
Maximum Power Consumption ( Watts ) | 2.5 |
Fiber link 1 / Receive activity (LK1) | This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received. |
Configuration Mode Strap | Auto (default) enable management module to overwrite hardware switch settings Switch - Use on-board DIP switches |
Laser Safety | EN 60825-1:2007 |
Storage temperature | minimum range of -25° C to 70° C (-13° F to 158° F) |
Bit Error Rate (BER) | <10-12 |
Description
CM-1000MM-S2ST10 - Managed Gigabit Fiber to Fiber Converter Module: 1000BASE-SX 850nm multimode (ST) [550 m/1804 ft.] to 1000BASE-LX/LH 1310 nm single mode (ST) [10 km/6.2 miles].Managed or unmanaged operation.
