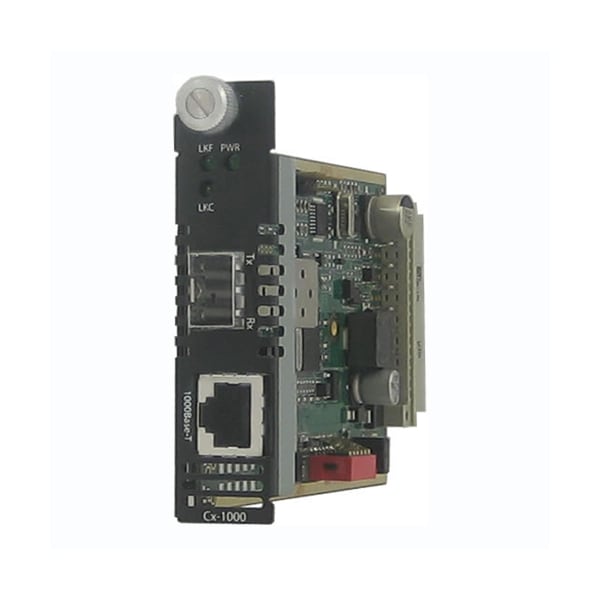

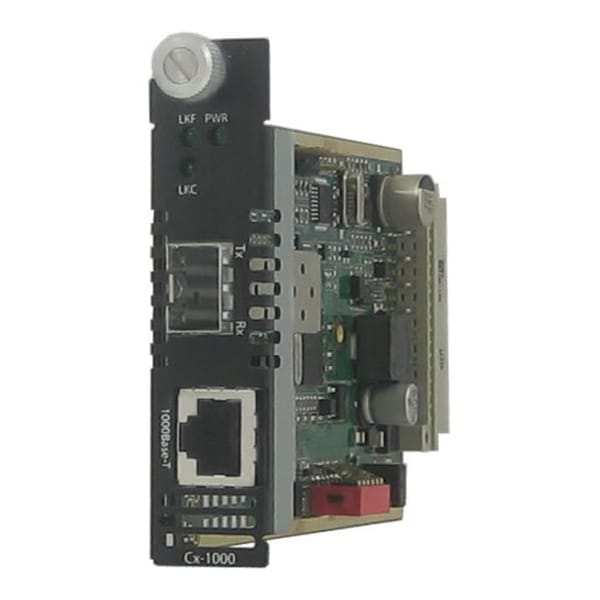

C-1110-Sfp Media Converter

Mfr # 05051190
Zoro # G4394409

$269.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Size Maximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet
Product Name C-1110-SFP Gigabit Ethernet Managed Media Converter
Network Technology 10/100/1000Base-T
Product Type Transceiver/Media Converter
Weight (Approximate) 3.52 oz

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Perle Systems
MFR # 05051190
Zoro # G4394409
UPC #
734660511902
Country of Origin Canada
Category Media Converters & Data Adapter Kits

Dimensions

Size	Maximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Details

Product Name	C-1110-SFP Gigabit Ethernet Managed Media Converter
Network Technology	10/100/1000Base-T
Product Type	Transceiver/Media Converter
Weight (Approximate)	3.52 oz
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Total Number of Ports	1
Number of SFP Slots	1
Environmentally Friendly	Yes
Number of Total Expansion Slots	1
Form Factor	Internal
Compatibility	MCR1900 Media Converter Chassis
Expansion Slot Type	SFP
Fiber Fault Alert	The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled; Enabled (Default - Up); When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature; Disabled (Down)
Copper Duplex (FDC)	This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is operational in full duplex mode. The LED is off when in half duplex.
Duplex Fiber	Full (Default); Half
Operating Humidity	5% to 90% non-condensing
Card insertion and removal	Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Duplex Copper	Full (Default); Half
Power / TST	This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
Small Form Factor Pluggable ( SFP ) slot	Empty slot for 1000Base-X or 100Base-XSFP modules supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.Hot insertion and removable ( hot swappable )
Filtering	1024 MAC Addresses
Electrical Safety	UL 60950-1
Operating temperature	0 C to 50 C (32 F to 122 F)
Remote Loopback	The media converter can perform a loopback on the 1000Base-X fiber interface; Disabled (Default - Up); Enabled- The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter is taken off the interface.
Auto-MDIX (Strap)	If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate; Enabled (Default)- Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable; Disabled- If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
Magnetic Isolation	1.5kv
Buffer	1000 Kbits frame buffer memory
10/100/1000 Speed	This multi-color LED is operational only when power is applied. The LED is green when the speed of the copper ethernet port is running at 1000 Mbps. The LED is orange when the speed of the copper Ethernet port is running at 100 Mbps. The LED is off when in 10 Mbps.
Storage temperature	minimum range of -25 C to 70 C (-13 F to 158 F)
Storage Humidity	5% to 95% non-condensing
Immunity	EN55024
Emissions	FCC Part 15 Class A, EN55022 Class A
Maximum Power Consumption ( Watts )	2.1
Fiber link on / Receive activity (LKF)	This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received.
Auto-Negotiation (802.3u)	Enabled (Default)- The media converter uses 802.3u Auto-negotiation on the 10/100/1000Base-T interface. It is set to advertise full duplex, half duplex, pause and remote fault capabilities; Disabled- The media converter sets the port according to the position of the speed and duplex switches.
Operating Altitude	Up to 3,048 meters (10,000 feet)
Fiber Duplex (FDF)	This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-X link is operational in full duplex mode. The LED is off when in half duplex.
Heat Output ( BTU/HR )	7.2
Speed Copper	100 (Default); 10
Copper link on / Receive activity (LKC)	This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is on and flashes with a 50% duty cycle when data is received.
Edge Connecter	32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. First make, last break for ground and power
10/100/1000Base-T	RJ45 connector; 2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100; 4 pair CAT5 UTP cable for Gigabit.

Description

C-1110-SFP - 10/100/1000Base-T Media and Rate Converter Module: 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-X or 100BASE-X - SFP Slot (empty)
