Shop All Ball Bushing Bearings
Pbc Linear

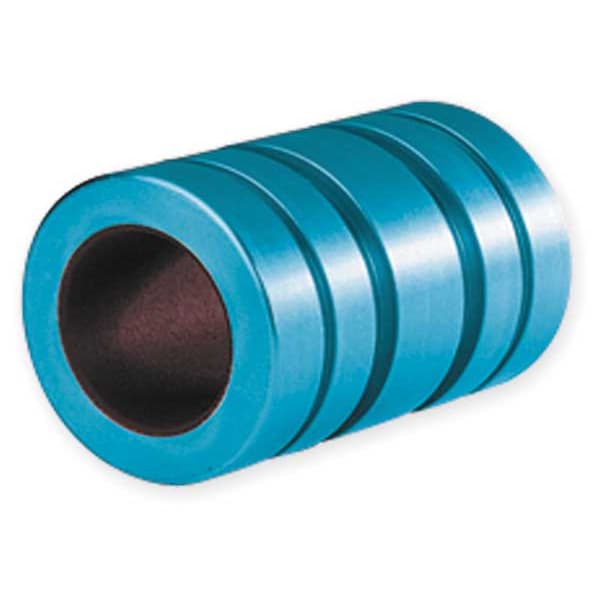

Standard Linear Bearing, 8mm
Mfr # FM08
Zoro # G3427487
$18.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Closed
- Outside Dia. 16 mm
- Material Aluminum
- Inside Dia. Tolerance +/-0.001
- Max. Pv 20,000 lb/sq in-fpm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Pbc Linear
- MFR # FM08
- Zoro # G3427487
- Country of Origin United States
- Category Ball Bushing Bearings
Dimensions
Outside Dia. | 16 mm |
Inside Dia. Tolerance | +/-0.001 |
Dimension B | 16 mm |
Inside Dia. | 8 mm |
Outside Dia. Tolerance | +/-0.001 |
Dimension C | 25 mm |
Length | 25 mm |
Inside Diameter | 8 mm |
Inside Diameter Tolerance | +0.085/+0.063 mm |
Outside Diameter | 16 mm |
Overall Length | 25 mm |
Outside Diameter Tolerance | +0.006/+0.001 mm |
Description
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 8 mm, Outside Diameter 16 mm, Overall Length 25 mm, Static Load Capacity 4,120 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FM, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.085/+0.063 mm
