Pbc Linear

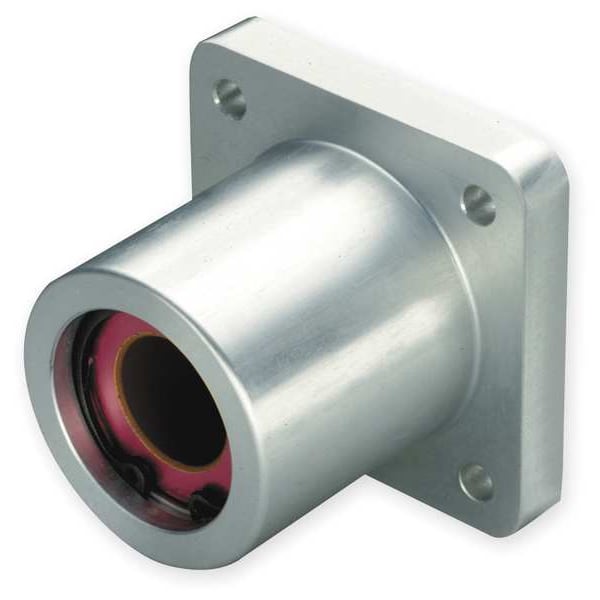

Flange Bearing, 1.000 In Bore, 2.812 In L
Mfr # SFP16
Zoro # G2906513
product price: $131.99
/ea
Free Shipping & Returns
$131.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bore Dia. (In.) 1 in
- Material Aluminum
- Dimension L (In.) 2.812 in
- Dynamic Load Capacity (N) 7,050 lbf
- Bearing Type Plain
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Pbc Linear
- MFR # SFP16
- Zoro # G2906513
- Country of Origin United States
- Category Mounted Linear Bearings
Dimensions
Bore Dia. (In.) | 1 in |
Dimension L (In.) | 2.812 in |
Mounting Hole Dia. (mm) | 0.28125 in |
Dimension d | 2.25 in |
Overall Width (In.) | 2.75 in |
Bolt Size | 1/4 in |
Dimension F | 0.25 in |
Dimension D | 2.25 in |
Dimension C | 2.125 in |
Body Width (In.) | 2.25 in |
Overall Length (In.) | 2.812 in |
Mounting Hole Dia. (In.) | 0.2813 in |
Dimension G | 0.281 in |
Dimension E | 0.5 in |
Dimension A | 1 in |
Dimension B | 2.75 in |
Overall Height (In.) | 2.75 in |
Dimension a | 1 in |
Inside Dia. | 1 in |
Length (In.) | 2 13/16 in |
Flange Width | 2.75 in |
Overall Height | 2 3/4 in |
Overall Length | 2 13/16 in |
Inside Diameter | 1 in |
Body Width | 2.25 in |
Outside Diameter | 2 1/4 in |
Mounting Hole Diameter | 9/32 in |
Description
Mounted Linear Bearing, Inside Diameter 1 in, Outside Diameter 2 1/4 in, Flange Width 2.75 in, Overall Length 2 13/16 in, Dynamic Load Capacity 7,050 lbf, Flange Thickness 0.5 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 3,810 lbf, Steady State Speed 5 fps, Housing Style Single, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F
