Parker

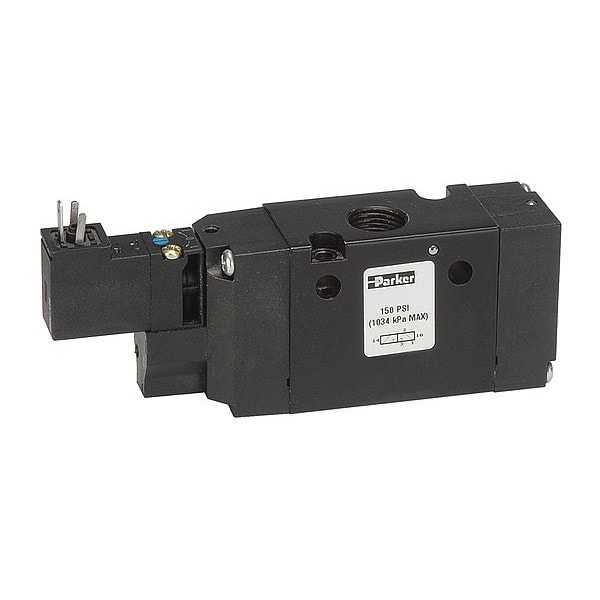

Solenoid Air Control Valve, 3/8 In, 120VAC

product price: $275.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 3-Way/2-Position
  • Voltage 120V AC
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 2.7
  • Pipe Size 3/8 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pipe Size 3/8 in
Overall Width 1 1/2 in
Pilot Port Size 3/8 in NPT
Overall Length 5 1/2 in
Overall Height 2 1/2 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 3-Way/2-Position
Voltage 120V AC
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 2.7
Max. CFM - Valves 2.5 cfm
Operational Pressure Range 20 to 145 psi
NEMA Classification NEMA 4
Normally Open / Normally Closed Normally Closed
Ambient Temp. Range 5 Degrees to 120 Degrees F
Body Style Body Ported
Valve Vacuum Range 0 to 28 in Hg
Override Non-Locking Flush
Pressure Range 20 to 145 psi
Standards CE, CSA, cUS
Electrical Connections 15mm, 3-Pin Male DIN
Actuator/Return Solenoid/Spring
Air Valve Type 3-Way, 2-Position

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 3/8 in, Max. CFM - Valves 2.5 cfm, Operational Pressure Range 20 to 145 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Normally Closed, Body Style Body Ported, Pilot Port Size 3/8 in NPT, Coefficient of Volume 2.7, 15mm, 3-Pin Male DIN Electrical Connections, Ambient Temp. Range 5 Degrees to 120 Degrees F, Override Non-Locking Flush
