Parker

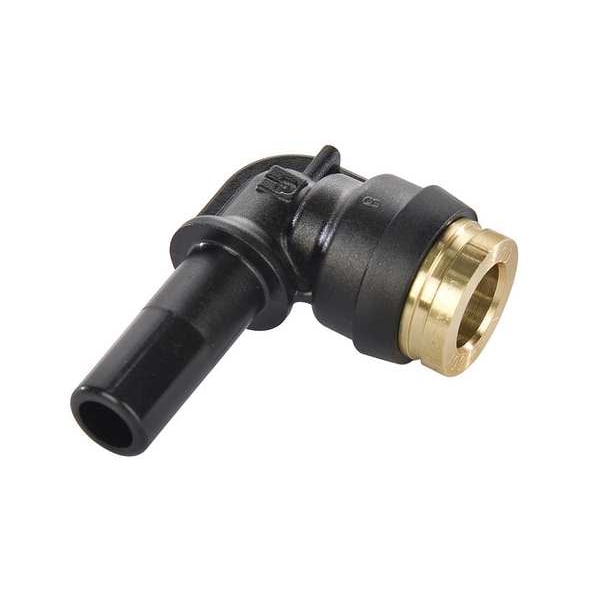

Push-to-Connect Composite DOT Push-to-Connect Fitting, Composite, Black
Mfr # 369PTCSP-8-6
Zoro # G105394124
product price: $9.29
/ea
$9.29
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Specific Fitting Shape 90 Degrees Elbow
- Compatible Tube Material J844 Type A Nylon, Stainless Steel
- Maximum Operating Pressure 250 psi
- Fitting Material Composite
- System of Measurement Imperial
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Parker
- MFR # 369PTCSP-8-6
- Zoro # G105394124
- Country of Origin Mexico
- Category Push-to-Connect Tube Fittings
Dimensions
| Fitting Side B Tube Outer Diameter | 3/8 in |
| Overall Length | 1 1/8 in |
| Fitting Side A Tube Outer Diameter | 1/2 in |
| For Tube Outside Diameter | 1/2 in, 3/8 in |
Details
| Item | Composite DOT Push-to-Connect Fitting |
| Specific Fitting Shape | 90 Degrees Elbow |
| Compatible Tube Material | J844 Type A Nylon, Stainless Steel |
| Maximum Operating Pressure | 250 psi |
| Fitting Material | Composite |
| System of Measurement | Imperial |
| Resistance Properties | Impact-Resistant |
| Fitting Side B Connection Type | Push-to-Connect |
| Release Type | Collet |
| Standards | DOT FMVSS 571.106, SAE J1131, SAE J2494-3 |
| Connection Type | Push-to-Connect x Push-to-Connect |
| Fitting Side A Connection Type | Push-to-Connect |
| Maximum Operating Temperature | 200 Degrees F |
| Application | Air |
| Color | Black |
| Minimum Operating Temperature | -40 Degrees F |
| Fitting Shape | Elbow |
| End Connection Type | Push-to-Connect |
| Fitting Body Material | Composite |
| For Tube OD | 1/2 in x 3/8 in |
Description
Composite DOT Push-to-Connect Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Material Composite, Color Black, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 1/8 in, Specific Fitting Shape 90 Degrees Elbow, Release Type Collet, Standards DOT FMVSS 571.106, SAE J1131, SAE J2494-3
