Shop All Bladder Accumulators
Parker

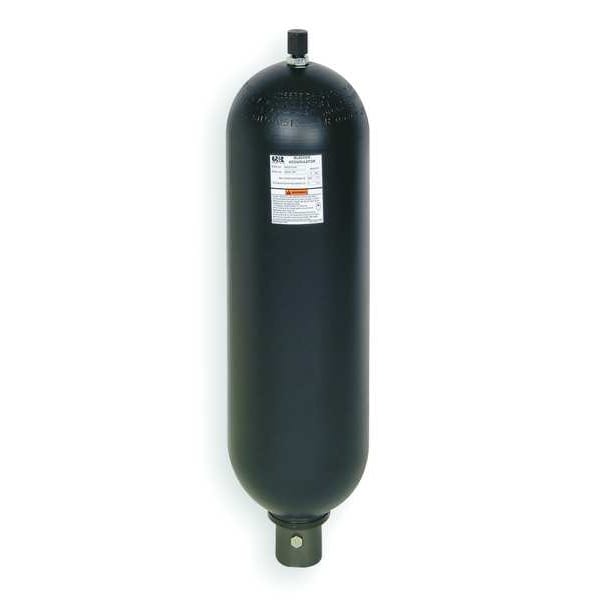

Accumulator, Bladder
Mfr # BA002B3T01Y2GRG
Zoro # G0643483
Free Shipping & Returns
$1,014.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Dia. (In.) 4.5
- Maximum Pressure 3000 psi
- Mounting Vertical
- Temp. Range -20 to 200 F for Mineral Oil, 32 to 200 F for Water and Water-Glycol
- Height (In.) 10.93
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Parker
- MFR # BA002B3T01Y2GRG
- Zoro # G0643483
- Country of Origin United States
- Category Bladder Accumulators
Dimensions
Dia. (In.) | 4.5 |
Height (In.) | 10.93 |
Diameter | 4.5 in |
Overall Height | 10.93 in |
Vent Diameter | 58 cu in |
Details
Item | Bladder Accumulator |
Maximum Pressure | 3000 psi |
Mounting | Vertical |
Temp. Range | -20 to 200 F for Mineral Oil, 32 to 200 F for Water and Water-Glycol |
Standards | ASME |
Max. Flow GPM | 40 |
Construction | Alloy Steel |
Gas Volume (Cu.-In.) | 58 |
Inlet SAE (In.) | SAE #16 (1-5/16-12) |
Fluid Volume | 58 cu in |
Gas Volume | 58 cu.-in. |
Hydraulic Fluid Port SAE/UNF | SAE #16 (1-5/16-12) |
Max. Pressure | 3,000 psi |
Shell Material - Accumulators | Steel |
Description
Bladder Accumulator, Fluid Volume 58 cu in, Vent Diameter 58 cu in, Max. Pressure 3,000 psi, Shell Material - Accumulators Steel, Diameter 4.5 in, Overall Height 10.93 in, Port Size Thread Standard SAE, Hydraulic Fluid Port Dash Size -16, Hydraulic Fluid Port SAE/UNF SAE #16 (1-5/16-12), Operating Temp. Range -20 to 200 Degrees F for Mineral Oil, 32 to 200 Degrees F for Water and Water-Glycol
