Parker

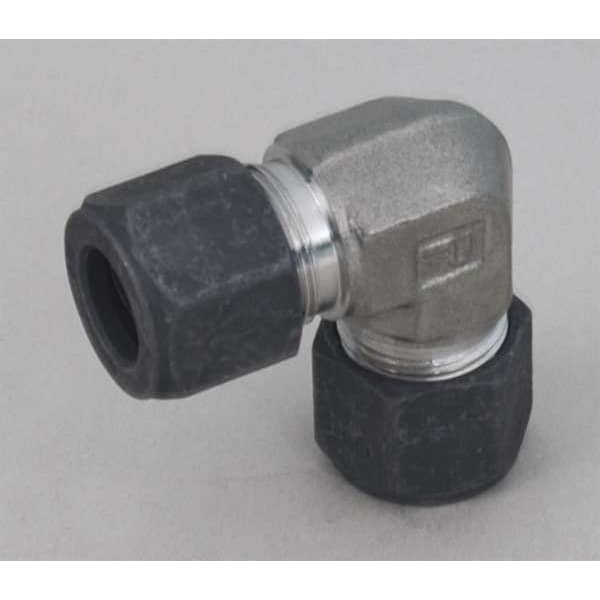

5/8" CPI 316 SS Union Elbow

product price: $68.15
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Hex Size 15/16 in
  • Specific Pipe Fitting Shape Elbow Union
  • Tube Size 5/8 in
  • Standards ASME SA-213, ASTM A213, ASTM A249, ASTM A269, MIL-T-8504, MIL-T-8506
  • Basic Pipe Fitting Material Metal
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Hex Size 15/16 in
Tube Size 5/8 in
Thread Size A 7/8-20
Overall Length 1 1/2 in
Fitting Side B Tube Outer Diameter 5/8 in
Fitting Side A Tube Outer Diameter 5/8 in
Thread Size B 7/8-20
Threading Size 7/8-20 x 7/8-20
For Tube Outside Diameter 5/8 in

Description

Union Elbow, Application Gases, Liquids, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 5/8 in, Fitting Side B Tube Outer Diameter 5/8 in, Material Grade 316, Maximum Operating Pressure 10,000 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 1 1/2 in, Specific Fitting Shape 90 Degrees Elbow, Compatible Fitting Brands CPI, Thread Size A 7/8-20, Thread Size B 7/8-20

Restrictions
