Panduit

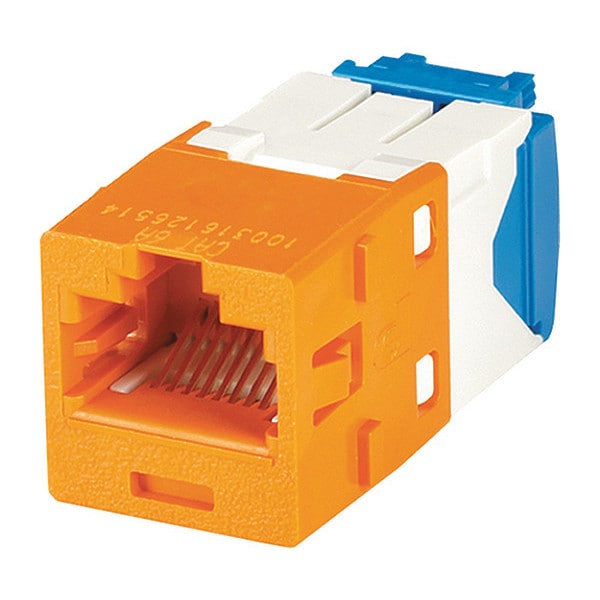

Module, Cat6a, Utp, 8p8w, Unvi, Or

product price: $305.99
/pk 10, $30.60/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Color Orange
  • Connector Type Jack Module - Standard
  • Wiring Scheme T568A/T568B
  • Maximum Storage Temperature (°C) 75
  • Resistance Properties Heat-Resistant
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Depth (In.) 1.5
Overall Height (In.) 0.71
Overall Width (In.) 0.63
Overall Length (In.) 1.5

Details

Color Orange
Connector Type Jack Module - Standard
Wiring Scheme T568A/T568B
Maximum Storage Temperature (°C) 75
Resistance Properties Heat-Resistant
Standards Met Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
Maximum Operating Temperature (°C) 75
Body Material Polycarbonate
Shield Type Unshielded (UTP)
Termination Style TG Style
Minimum Storage Temperature (°C) -40
Performance Level Category 6A
Module Type Mini-Com®
Minimum Operating Temperature (°C) -10
Contact Material Plated Phosphor Bronze
Product Type Jack Module

Description

Module, Cat6a, Utp, 8p8w, Unvi, Or
