Shop All Voice & Data Jacks
Panduit

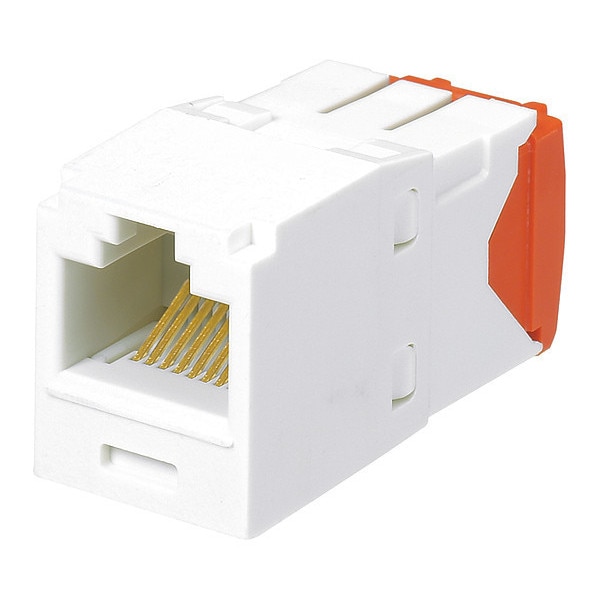

Module, Cat5e, Utp, 8p8w, Tgstyle, Iw

product price: $259.99
/pk 25, $10.40/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Off White
  • Connector Type Jack Module - Standard
  • Overall Height (In.) 0.71
  • Contact Material Plated Phosphor Bronze
  • Product Type Jack Module
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Height (In.) 0.71
Overall Depth (In.) 1.5
Overall Width (In.) 0.62
Overall Length (In.) 1.5

Details

Color Off White
Connector Type Jack Module - Standard
Contact Material Plated Phosphor Bronze
Product Type Jack Module
Wiring Scheme T568A/T568B
Minimum Storage Temperature (°C) -40
Maximum Storage Temperature (°C) 75
Shield Type Unshielded (UTP)
Minimum Operating Temperature (°C) -10
Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets ANSI/TIA-1096-A, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, Meets IEC 60603-7, UL 1863 and UL 2043, and RoHS Compliant
Module Type Mini-Com®
Maximum Operating Temperature (°C) 75
Body Material Polycarbonate
Resistance Properties Heat-Resistant
Termination Style TG Style
Performance Level Category 5e

Description

Module, Cat5e, Utp, 8p8w, Tgstyle, Iw
