Panduit

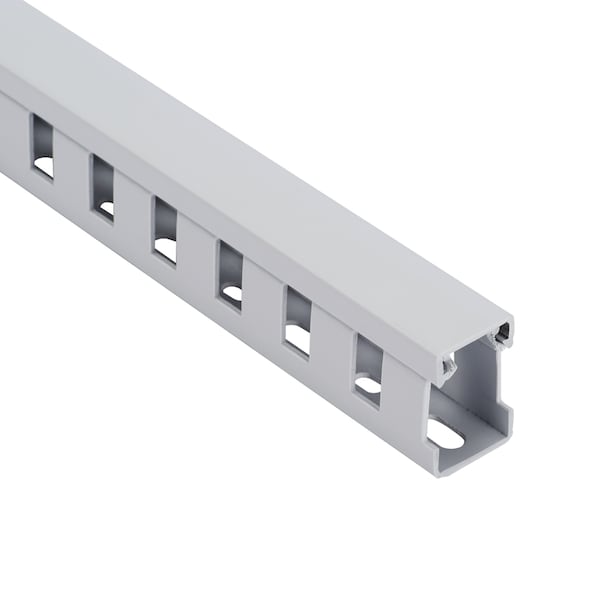

Low-Smoke, Halogen-Free Slotted Wall Wiring D, TNC75X75LG2, PK 5
Mfr # TNC75X75LG2
Zoro # G2802085
Free Shipping & Returns
$208.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Light Gray
- Material Polyphenylene Ether + High Impact Polystyrene (PPE + HIPS)
- Width 2.94 in
- Height 2.86 in
- Overall Length 6.6 ft
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Panduit
- MFR # TNC75X75LG2
- Zoro # G2802085
- UPC # 7498359776
- Country of Origin United States
- Category Wire Ducts
Dimensions
Width | 2.94 in |
Height | 2.86 in |
Overall Length | 6.6 ft |
Slot Width (mm) | 10 |
Slot Width (In.) | 0.39 |
Overall Width (mm) | 74.7 |
Overall Height (In.) | 2.86 |
Overall Height (mm) | 72.6 |
Overall Length (m) | 2 |
Overall Width (In.) | 2.94 |
Overall Length (ft.) | 6.6 |
Details
Color | Light Gray |
Material | Polyphenylene Ether + High Impact Polystyrene (PPE + HIPS) |
Includes | Base and Cover |
Application | (1) Type TNC Wiring Duct Routes, Protects, and Manages Electrical and Communication Cabling in Control Panels and Wire Routing Applications that Require Enhanced Material Performance for Fire Safety such as in Light Rail and Transit Systems, Commuter Buses, Data Centers, Offshore Oil and Gas Platforms, and other Environments |
Measurement System | Metric |
Product Type | Base/Cover |
Flammability Rating | UL94 V-0 |
Mount Method | DIN Mounting Holes |
Wiring Duct Type | TNC |
Wiring Duct Style | Slotted Wall Wiring Duct |
Cover Part Number | TNC75LG2 (included) |
Product Class | Wire Routing, Management & Protection |
Description
Low-Smoke, Halogen-Free Slotted Wall Wiring Duct, 75mm x 75mm, Light Gray
