  11. Female Disconnect, Blue, 16-14AWG, PK20
Shop All Wire Disconnects
Panduit

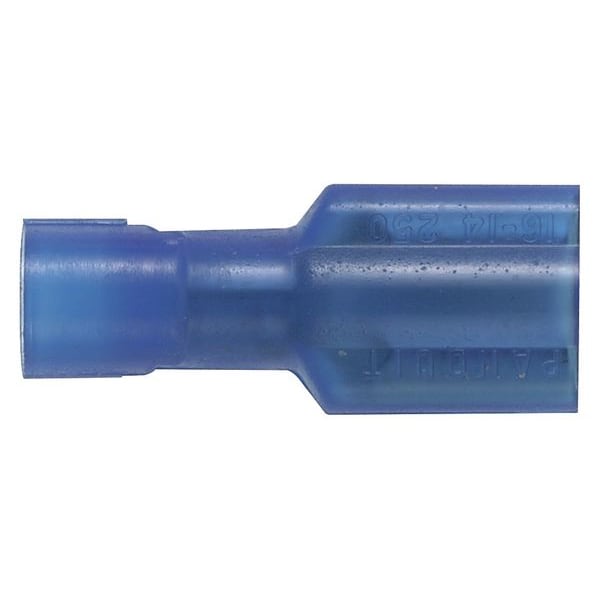

Female Disconnect, Blue, 16-14AWG, PK20

product price: $24.35
/pk 20, $1.22/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Insulation Full
  • For Use With CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
  • Insulation Color Blue
  • Color Code Blue
  • Insulation Type Nylon
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Length 0.84 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.09 in
Width 0.4"
Strip Length 1/4 in
Barrel Inside Diameter 0.09 in
Maximum Wire Size 14 AWG
Wire Size Range 16 AWG - 14 AWG
Tab Width 0.25 in
Minimum Wire Size 16 AWG
Minimum Wire Size (AWG) #16
Overall Length (In.) 0.84
Minimum Metric Conductor Size (mm²) 1.5
Maximum Copper Conductor Size (AWG) #14
Minimum Copper Conductor Size (AWG) #16
Overall Length (mm) 21.3
Overall Width (mm) 8.9
Maximum Wire Size (AWG) #14
Tab Size (In.) 0.250 x 0.032
Insulation Diameter (mm) 4.1
Maximum Metric Conductor Size (mm²) 2.5
Wire Strip Length (In.) 11933
Overall Width (In.) 0.35
Maximum Wire Insulation Diameter (In.) 0.16
Insulation Diameter (In.) 0.16
Wire Strip Length (mm) 7.1
Tab Size (mm) 6.3 x 0.8
Maximum Wire Insulation Diameter (mm) 4.1
Minimum Metric Conductor Size (mm²) 1.5
Maximum Metric Conductor Size (mm²) 2.5

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards C22.2 No.153, CSA Certified LR31212, UL 310, UL Listed 20H3 E78522
