Shop All Compression Lugs
Panduit

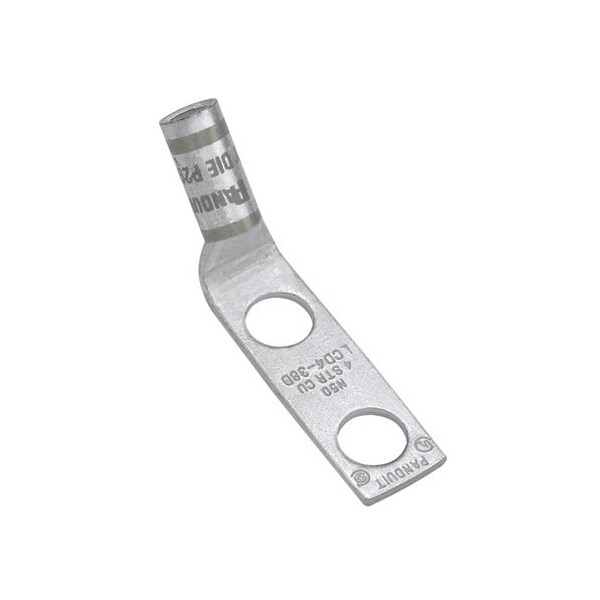

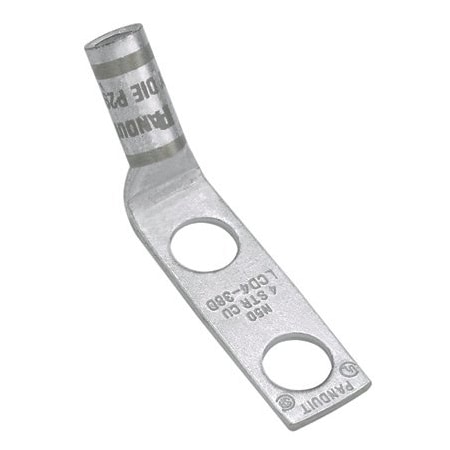

Copper Compression Lug, 2 Hole, #4 - #3
Mfr # LCD4-14AH-L
Zoro # G204859678
product price: $10.29
/ea
$10.29
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material Copper
- Color Code Gray
- Hole Center to Center 44565
- Tongue Style Standard
- Tongue Width - Wire Connector 0.55
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Panduit
- MFR # LCD4-14AH-L
- Zoro # G204859678
- UPC # 7498356670
- Country of Origin Mexico
- Category Compression Lugs
Dimensions
Tongue Width - Wire Connector | 0.55 |
Overall Length | 2.03 in |
Barrel Length | 0.81 |
Stud Hole Size (In.) | 44930 |
Overall Length (mm) | 51.6 |
Copper Code Conductor Size (AWG) | 4 |
Tongue Width (In.) | 0.55 |
Tongue Width (mm) | 14 |
Stud Hole Size (mm) | 6.4 |
Overall Length (In.) | 2.03 |
Barrel Length (In.) | 0.81 |
Wire Strip Length (mm) | 22.2 |
Barrel Length (mm) | 20.6 |
Description
Two-hole, standard barrel lug with window, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, .63 hole spacing, 45° angle tongue.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
