Panduit

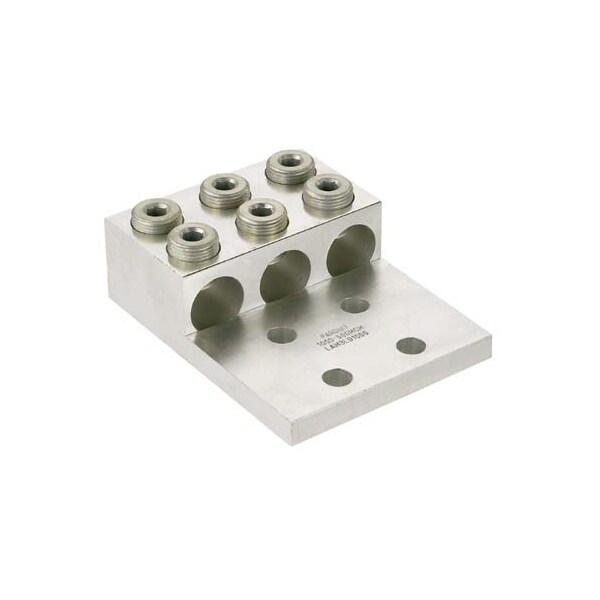

Aluminum Mechanical Lug, 4 Hole, 3 Barre
Mfr # LAM3LD1000-121Y
Zoro # G2773400
product price: $280.99
/ea
Free Shipping & Returns
$280.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Length 6.19 in
- Height 1.9 in
- Stud Hole Spacing (In.) 1.75
- Tongue Thickness (mm) 14.2
- Overall Length (In.) 6.19
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Panduit
- MFR # LAM3LD1000-121Y
- Zoro # G2773400
- UPC # 7498363012
- Country of Origin United States
- Category Compression Lugs
Dimensions
Overall Length | 6.19 in |
Height | 1.9 in |
Overall Length (In.) | 6.19 |
Tongue Length (In.) | 3.44 |
Tongue Width (In.) | 5.27 |
Tongue Width (mm) | 120.7 |
Hex Size (mm) | 12.7 |
Stud Hole Size (In.) | 1 to 2 |
Overall Height (In.) | 1.9 |
Tongue Length (mm) | 87.4 |
Overall Length (mm) | 157.2 |
Overall Height (mm) | 47.8 |
Details
Stud Hole Spacing (In.) | 1.75 |
Tongue Thickness (mm) | 14.2 |
Base Material | Aluminum |
Tongue Thickness (In.) | 0.56 |
Stud Hole Spacing (mm) | 44.5 |
Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
Product Type | Mechanical Connectors - Lug |
UL Temperature Rating (°C) | 90 |
Number of Holes | 4 |
Finish/Coating | Tin-Plated |
Maximum Voltage (V) | 600 |
Product Class | Wire Termination |
Description
Documents & Resources
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
