  9. Mini Type 1x 100/1000TX to 1x 100/1000 (SFP) Gigabit Media Convertor
Shop All Media Converters & Data Adapter Kits
Oring Networking

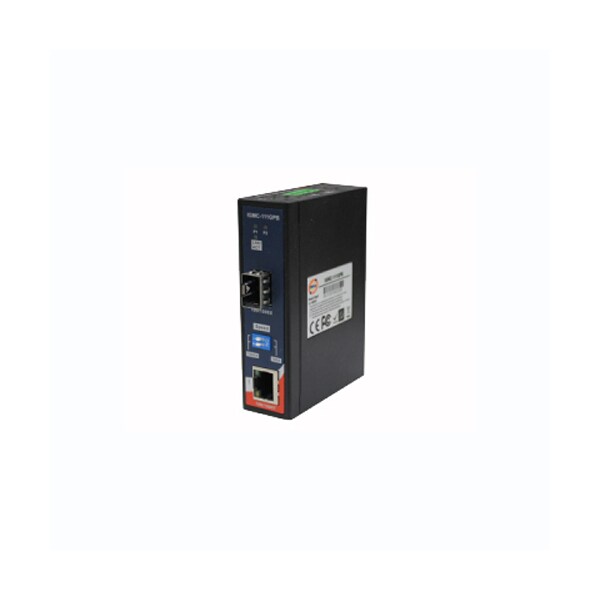

Mini Type 1x 100/1000TX to 1x 100/1000 (SFP) Gigabit Media Convertor

product price: $340.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Vibration IEC60068-2-6 , EN61373
  • Redundant Input Power Dual 12 ~ 48VDC power inputs at 4-pin terminal block
  • Reverse Polarity Protection Present
  • Free Fall IEC60068-2-32
  • Dimensions (W x D x H) 26.1(W) x 70(D) x 95(H) mm (1.03 x 2.76 x 3.74 inch.)
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Dimensions (W x D x H) 26.1(W) x 70(D) x 95(H) mm (1.03 x 2.76 x 3.74 inch.)

Details

Vibration IEC60068-2-6 , EN61373
Redundant Input Power Dual 12 ~ 48VDC power inputs at 4-pin terminal block
Reverse Polarity Protection Present
Free Fall IEC60068-2-32
100/1000Base-T(X) RJ45 port Indicator LED for Link/Act and Speed indicator ~; Green on only : 1000Mbps Link/Act; Green and Amber on : 100Mbps Link/Act; Note : If Amber on only : 10Mbps (This is not avail mode)
Power consumption (Typ.) 3.6 Watts
Ethernet Standards IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3z for 1000Base-X; IEEE 802.3ab for 1000Base-T
100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX 1
EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 ; (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
DIP-Switch DIP-Switch 1 (ON) and 2 (ON) : SFP speed setting to 100Mbps; DIP-Switch 1 (OFF) and 2 (OFF) : SFP speed setting to 1000Mbps
100/1000Base-X SFP Port 1
Operating Humidity 5% to 95% Non-condensing
Processing Store-and-Forward
Overload Current Protection Present
EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, ; EN50121-4)
Storage temperature -40 to 85°C (-40 to 185°F)
Safety EN60950-1
Enclosure IP-30
Operating temperature -40 to 70°C (-40 to 158°F)
Power indicator Green : Power LED x 2
100/1000Base-X SFP port Indicator Green for port Link/Act.
Shock IEC60068-2-27 , EN61373

Description

Mini Type 1x 100/1000TX (RJ-45) to 1x 100/1000 (SFP) Gigabit Media Convertor
