Shop All Limit Switch Accessories
Omron

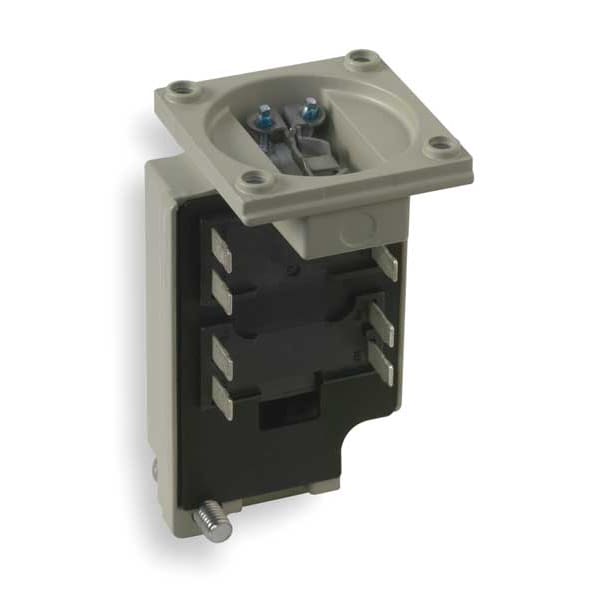

2NC/2NO Limit Switch Box Nema 3, 4, 4X, 6P, 12, 13
Mfr # D4A0900N
Zoro # G2337815
product price: $109.99
/ea
Free Shipping & Returns
$109.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- For Use With Mfr. No. D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N and D4A2918N Limit Switches
- Contact Form 2NO/2NC
- AC Contact Rating 5 A @ 600 V
- DC Contact Rating Not Rated
- IP Rating IP67
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Omron
- MFR # D4A0900N
- Zoro # G2337815
- Country of Origin Japan
- Category Limit Switch Accessories
Dimensions
| Mounting Hole Diameter | 0.4 in |
Details
| Item | Limit Switch Box |
| For Use With | Mfr. No. D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N and D4A2918N Limit Switches |
| Contact Form | 2NO/2NC |
| AC Contact Rating | 5 A @ 600 V |
| DC Contact Rating | Not Rated |
| IP Rating | IP67 |
| NEMA Rating | 12, 13, 3, 4, 4X, 6P |
| Operating Temp. | -40 Degrees to 212 Degrees F |
| Standards | CSA, UL Listed |
| Material | Stainless Steel |
| Number of Mounting Holes | 2 |
| Compatible with Manufacturer Model Number | D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N, D4A2918N |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| NEMA Enclosure Rating | 12, 13, 3, 4, 4X, 6P |
| Compatible with Series | D4A-N |
| Operating Temperature - Minimum | -40 Degrees F |
| Body Configuration | Plug-In |
| Operating Temperature - Maximum | 212 Degrees F |
| Mounting Hole Vertical Center to Center Distance | 76 mm |
| Indicating Light | No Indicating Light Included |
Description
Limit Switch Box, Contact Form 2NO/2NC, For Use With Mfr. No. D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N and D4A2918N Limit Switches, AC Contact Rating 5 A @ 600 V, NEMA Rating 12, 13, 3, 4, 4X, 6P, Electrical Connection Not Applicable, IP Rating IP67, Operating Temp. -40 Degrees to 212 Degrees F, Standards CSA, UL Listed
