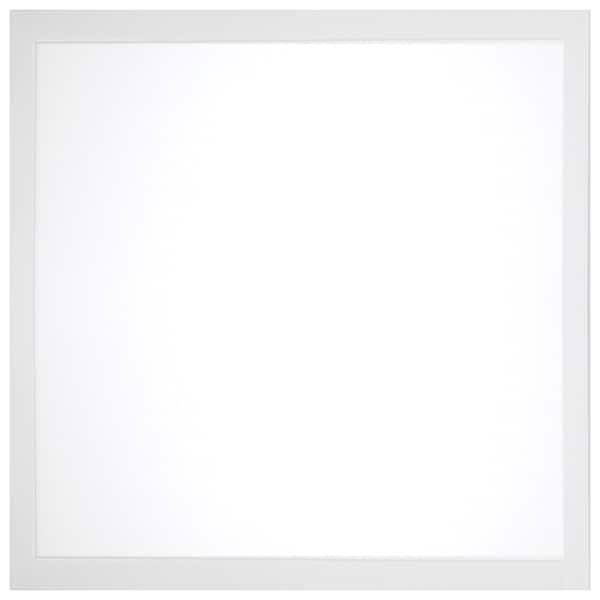

LED Emergency Backlit Flat Panel - 2 ft. x 2 ft. - Watt/CCT Select - 100-347V - Color/PowerQuick

product price: $201.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Voltage 100-347
  • Lamp Type - Fixtures Integrated LED
  • Watts 20/30/40W
  • Color Temperature 3500/4000/5000
  • Lumens 2200-4600
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 2.88 in
Length 23.75 in
Width 23.75 in

Details

Voltage 100-347
Lamp Type - Fixtures Integrated LED
Watts 20/30/40W
Color Temperature 3500/4000/5000
Lumens 2200-4600
Rated Life 50000 hrs
Dimmable 100 to 20 percent
Beam Angle 120 degrees
Temp. Range -17C (+1.4F) to +45C (+113F)
CRI 80+
Housing Finish White
Features Damp Location, Driver Specs - VDC38-48V; 430/620/810mA
Standards cETLus ; RoHS ; FCC ; DLC ; IP20
Housing Material Aluminum / Steel
Includes Mounting hardware
Wattage / Lumen Selectable Yes
Application Indoor Lighting
Lens Material Poly methyl methacrylate (PMMA)
Incandescent Equivalent 100-150
Lens Finish Frost

Description

SATCO NUVO's LED Backlit 2X2 Flat Panel 65-585R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT option, customers can choose from nine possible power and color configurations at installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. A flicker-free driver reduces strobing, generating comfortable light suitable for long-term task usage. This model features an emergency battery backup driver that provides 90 minutes of light with 8 watts of power and 1000 lumens making you feel safe and sound when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance-free life.
