Shop All Pneumatic Flow Control Valves
Numatics

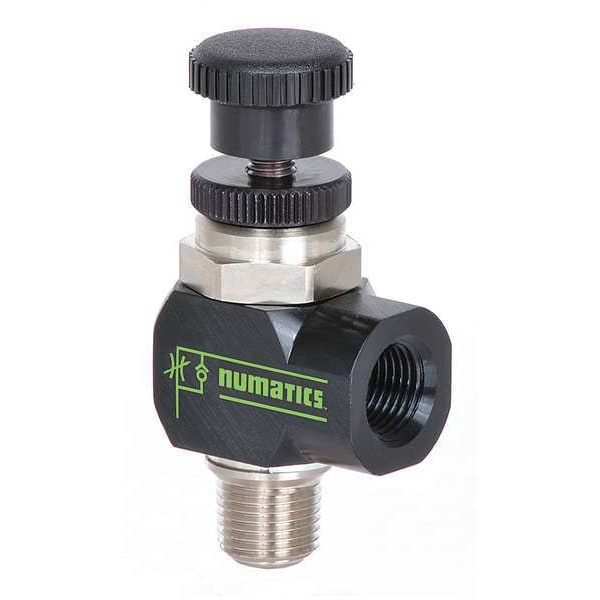

Swivel, 1/8In NPT, 1/8In NPT
Mfr # 1FCTN
Zoro # G9755742
original price:
$30.19
5% off
new price: $28.55
/ea
$28.55
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Max. Temp. 160 Degrees F
- Valve Inlet Port 1/8 in NPT
- Valve Outlet Port 1/8 in NPT
- Valve Max. Pressure Rating 175 psi
- Max. CFM - Valves 16 cfm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Numatics
- MFR # 1FCTN
- Zoro # G9755742
- Country of Origin United States
- Category Pneumatic Flow Control Valves
Dimensions
Width | 49/50 in |
Length | 2 17/81 in |
Details
Item | Flow Control Valve |
Max. Temp. | 160 Degrees F |
Valve Inlet Port | 1/8 in NPT |
Valve Outlet Port | 1/8 in NPT |
Valve Max. Pressure Rating | 175 psi |
Max. CFM - Valves | 16 cfm |
Coefficient of Volume | 0.3 |
CFM | 16 |
Outlet Port | 1/8" NPT |
Body | Anodized Aluminum |
Spring | Stainless Steel |
Pressure Range | 0 to 175 psi |
Inlet Port | 1/8" NPT |
Rotation | 360 Degrees |
Adjustment Knob | Knurled, Plastic Locking |
Max. Operating PSI | 175 |
Speed Adjustment | Adjustment Knob |
Description
Flow Control Valve, Valve Inlet Port 1/8 in NPT, Valve Outlet Port 1/8 in NPT, Valve Max. Pressure Rating 175 psi, Max. CFM - Valves 16 cfm, Pressure Range 0 to 175 psi, Max. Temp. 160 Degrees F, Knurled, Plastic Locking Adjustment Knob, Anodized Aluminum Body, 360 Degrees Rotation, Adjustment Knob Speed Adjustment, Stainless Steel Spring, Length 2 17/81 in, Width 49/50 in, Pneumatic Valves Product Group Flow Control Valve
