Numatics

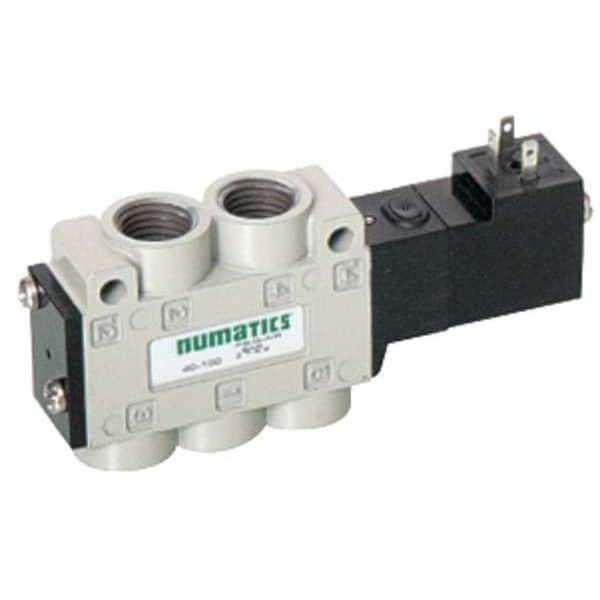

Solenoid Air Control Valve, 1/4 In, 24VDC

product price: $125.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 4-Way/2-Position
  • Voltage 24V DC
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 0.5
  • Pipe Size 1/4 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pipe Size 1/4 in
Pilot Port Size 1/4 in NPT
Overall Height 1 3/4 in
Overall Length 3 3/4 in
Overall Width 1 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 4-Way/2-Position
Voltage 24V DC
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 0.5
NEMA Classification NEMA 4
Vacuum Range 0 to 28" Hg
CFM 23.5
Valve Vacuum Range 0 to 28 in Hg
Actuator/Return Solenoid/Spring
Ambient Temp. Range 13 Degrees to 194 Degrees F
Body Style Body Ported
Pressure Range 28" Hg Vacuum to 145 PSIG
Power Consumption 3.5 W
Standards No standard
Shifting Technology Spool & Sleeve
Air Valve Type 4-Way, 2-Position
Electrical Connections Standard Form C

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/4 in, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Body Style Body Ported, Pilot Port Size 1/4 in NPT, Coefficient of Volume 0.5, Standard Form C Electrical Connections, Shifting Technology Spool & Sleeve, Power Consumption 3.5 W, Ambient Temp. Range 13 Degrees to 194 Degrees F, Overall Height 1 3/4 in, Overall Length 3 3/4 in
