Shop All Flange Bearings
Ntn

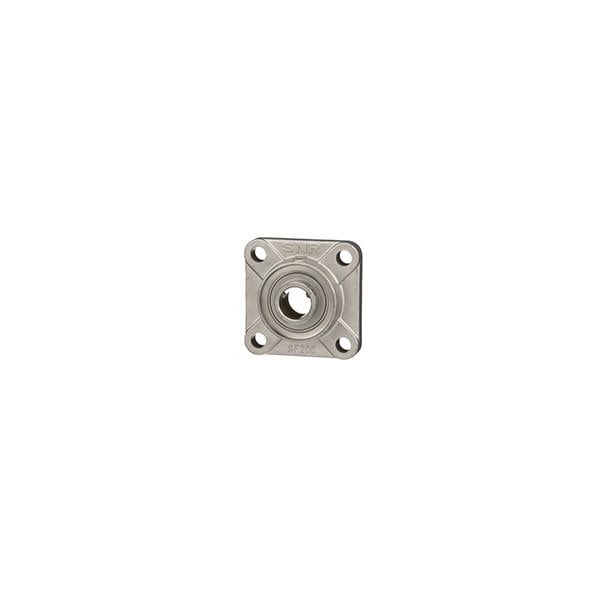

Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore
Mfr # SUCF206-20
Zoro # G0560402
Free Shipping & Returns
$261.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bearing Insert Type Radial Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Set Screws
- Bearing Housing Material Type Stainless Steel
- Bearing Insert Material Stainless Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Ntn
- MFR # SUCF206-20
- Zoro # G0560402
- Country of Origin Multiple
- Category Flange Bearings
Dimensions
Bore Dia. | 1 1/4 in |
Bolt Size | M10 |
Overall Height | 4.25 in |
Dimension G | 13 mm |
Dimension E | 83 mm |
Overall Length | 4.25 in |
Dimension A | 108 mm |
Dimension L | 31 mm |
Overall Width | 1 37/64 in |
Dimension S | 12 mm |
Dimension N | 15.9 mm |
Bore Diameter | 1 1/4 in |
Mount Hole Center-to-Center Height | 3 17/64 in |
Mount Hole Size | 0.472 in |
Mounting Bolt Size | 7/16 in |
Mount Hole Center-to-Center Length | 3 17/64 in |
Back Side to Center Width | 0.709 in |
Description
4 Bolt Flange Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in, Number of Mount Holes 4
