Shop All Flange Bearings
Ntn

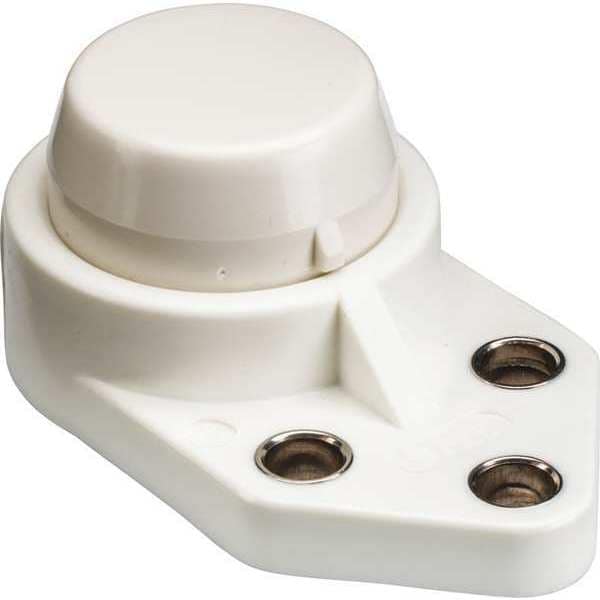

Flange Bearing, 3-Bolt, 1" Bore Dia.
Mfr # SUCFBL205-16CCFG1
Zoro # G2124661
Free Shipping & Returns
$309.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bearing Insert Type Radial Ball
- Bore Dia. 1 in
- Shaft Locking Type Set Screws
- Bearing Housing Material Type PBT
- Bearing Insert Material Stainless Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Ntn
- MFR # SUCFBL205-16CCFG1
- Zoro # G2124661
- Country of Origin Multiple
- Category Flange Bearings
Dimensions
Bore Dia. | 1 in |
Bolt Size | 3/8 in |
Overall Height | 4.75 in |
Overall Width | 2 13/64 in |
Overall Length | 2 3/4 in |
Back Side to Center Width | 0.606 in |
Bore Diameter | 1 in |
Mount Hole Center-to-Center Height | 1 1/8 in |
Mounting Bolt Size | 3/8 in |
Center Height | 3 23/64 in |
Mount Hole Size | 0.421 in |
Mount Hole Center-to-Center Length | 1 5/8 in |
Description
3 Bolt Flange Bearing, Back Side to Center Width 0.606 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 3 23/64 in, Closure Double Sealed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing SUC204-12, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F
