Shop All Flange Bearings
Ntn

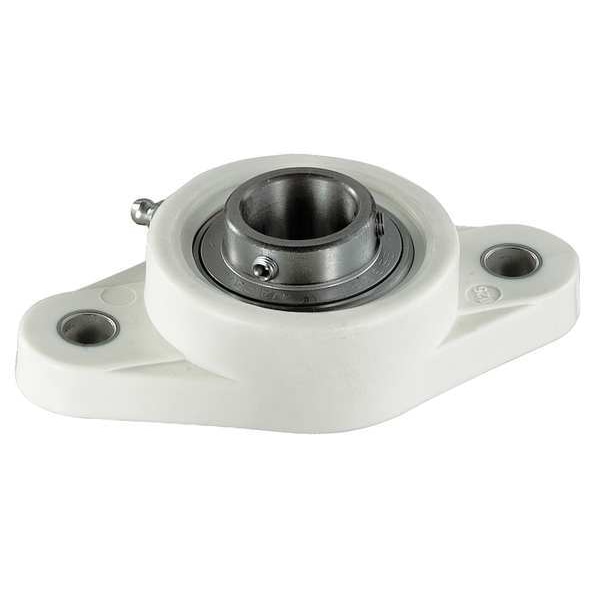

Flange Bearing, 2-Bolt, Ball, 1" Bore
Mfr # SUCNFL205-16
Zoro # G1330244
Free Shipping & Returns
$191.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bearing Insert Type Radial Ball
- Bore Dia. 1 in
- Shaft Locking Type Set Screws
- Bearing Housing Material Type PBT
- Bearing Insert Material Stainless Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Ntn
- MFR # SUCNFL205-16
- Zoro # G1330244
- Country of Origin Multiple
- Category Flange Bearings
Dimensions
Bore Dia. | 1 in |
Bolt Size | M10 |
Overall Height | 2 3/4 in |
Overall Width | 2 in |
Dimension S | 7/16 in |
Dimension E | 3 57/64 in |
Dimension G | 17/32 in |
Dimension L | 2 3/4 in |
Dimension A | 5 1/8 in |
Dimension B | 1 11/32 in |
Overall Length | 5 7/64 in |
Mounting Bolt Size | 3/8 in |
Back Side to Center Width | 0.669 in |
Bore Diameter | 1 in |
Mount Hole Size | 0.433 in |
Mount Hole Center-to-Center Length | 3 57/64 in |
Description
2 Bolt Flange Bearing, Back Side to Center Width 0.669 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Number of Mount Holes 2, Overall Height 2 3/4 in, Overall Length 5 7/64 in
