Shop All Flange Bearings
Ntn

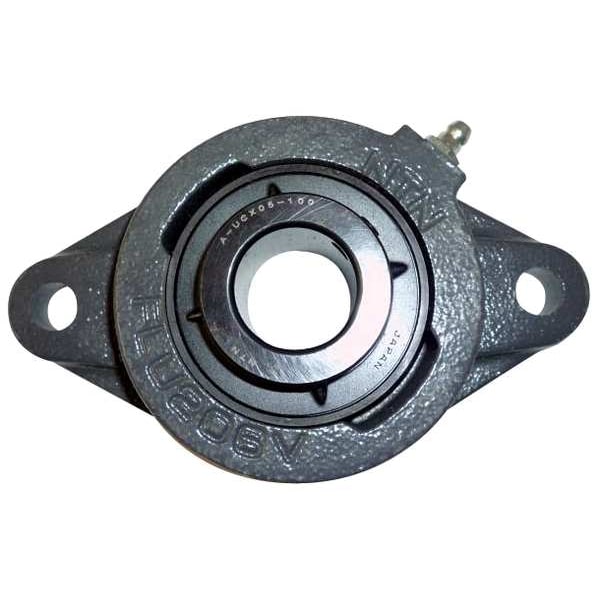

Flange Bearing, 2-Bolt, Ball, 1" Bore
Mfr # ARFLU-1
Zoro # G3430621
original price:
$58.69
4% off
new price: $55.99
/ea
$55.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bearing Insert Type Radial Ball
- Bore Dia. 1 in
- Shaft Locking Type Set Screws
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material Alloy Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Ntn
- MFR # ARFLU-1
- Zoro # G3430621
- Country of Origin Japan
- Category Flange Bearings
Dimensions
Bore Dia. | 1 in |
Bolt Size | 7/16 in |
Overall Height | 2.75 in |
Dimension H | 4 29/32 in |
Dimension N | 3/64 in |
Dimension L | 2 3/4 in |
Dimension Ao | 1 33/64 in |
Dimension A | 1 3/16 in |
Overall Width | 1 33/64 in |
Overall Length | 4 29/32 in |
Dimension J | 3 57/64 in |
Dimension S | 1 3/16 in |
Dimension B | 1 1/16 in |
Mounting Bolt Size | 7/16 in |
Inner Ring Width | 3.5 mm |
Mount Hole Size | 0.469 in |
Mount Hole Center-to-Center Length | 3 57/64 in |
Mount Hole Center-to-Center Height | 3 57/64 in |
Back Side to Center Width | 0.752 in |
Bore Diameter | 1 in |
Description
2 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-AR205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 57/64 in, Number of Mount Holes 2
