Shop All Flange Bearings
Ntn

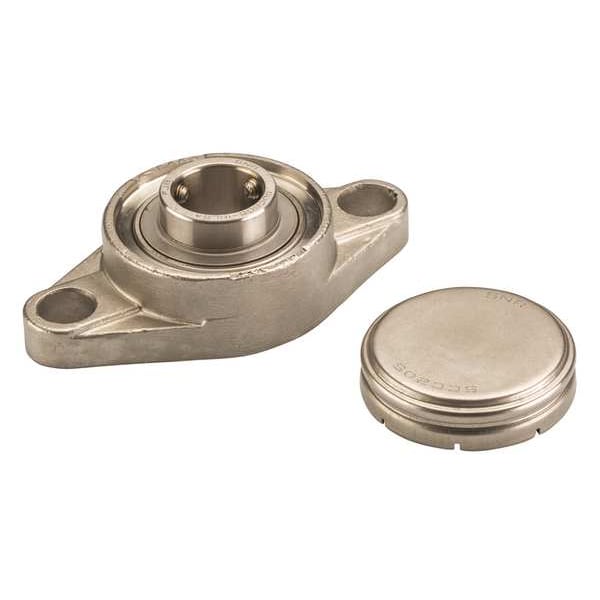

Flange Bearing, 2-Bolt, 1" Bore, SS/SS
Mfr # SUCFL205-16CCFG1
Zoro # G2124232
Free Shipping & Returns
$276.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bearing Insert Type Radial Ball
- Bore Dia. 1 in
- Shaft Locking Type Set Screws
- Bearing Housing Material Type Stainless Steel
- Bearing Insert Material Stainless Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Ntn
- MFR # SUCFL205-16CCFG1
- Zoro # G2124232
- Country of Origin Multiple
- Category Flange Bearings
Dimensions
Bore Dia. | 1 in |
Bolt Size | 1/2 in |
Overall Height | 2 21/32 in |
Overall Width | 1 13/32 in |
Overall Length | 4 29/32 in |
Mounting Bolt Size | 5/8 in |
Back Side to Center Width | 0.63 in |
Bore Diameter | 1 in |
Mount Hole Center-to-Center Height | 3 57/64 in |
Mount Hole Center-to-Center Length | 3 57/64 in |
Mount Hole Size | 0.63 in |
Description
2 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 3 57/64 in, Number of Mount Holes 2
