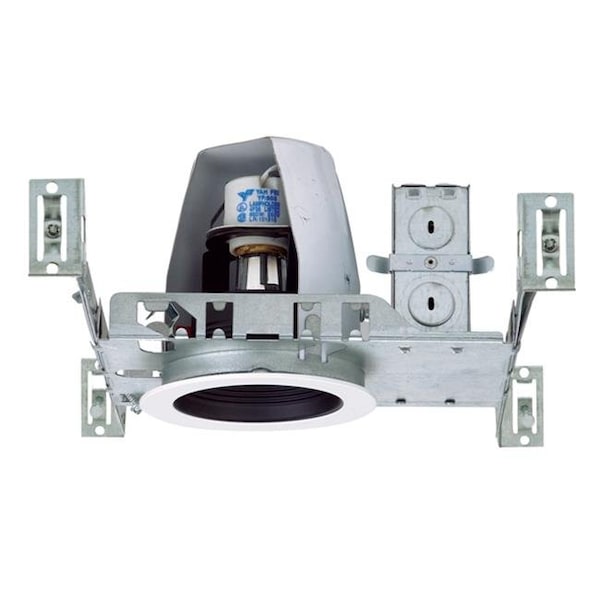

Nicor Lighting 19000A 4 In. 120V Airtight Universal HSG
Mfr # 19000A
Zoro # G504169828
$27.69
Free Shipping on orders over $50
after you
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Nicor Lighting
- MFR # 19000A
- Zoro # G504169828
- UPC # 767706002232
- Country of Origin China
- Category Headers & Wire Housings
Description
Features
- Suitable for new construction in residential and commercial applications
- NON-IC
- Insulation must be kept a minimum of 3 in. from housing
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
- Washington State Energy Code approved to meet restricted airflow requirements
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Adjustable socket bracket assures proper and consistent lamp positioning
- 5 1/2 in. height allows use in 2 x 6 in. joist construction
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Housing adjusts from 1/2 to 1 1/2 in. to accommodate ceiling thickness
- Listed for through branch circuit wiring and includes several 3/4 in. knockouts
- Four pry-outs with integral strain relief simplify Romex installation
- Supplied with three IDEAL® push-in wire connectors
- Heavy-gauge Nicor Lighting captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24 in. joist span, then locked in place with set screws. Unique hanger bar lip design helps align can to joist
- Four double-headed captive nails provide for ease of installation
- Bars can be repositioned 90° on plaster frame without tools
- Bars fit onto T-bar spine for quick alignment and can be permanently secured
- Score lines allow bars to be shortened without tools to accommodate a 12 in. joist span
- Dimension - 14.25 x 10.25 x 5.25 in.
- Item Weight - 2.79 lbs.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
- Hazardous material
