Shop All Air Amplifiers
Nex Flow

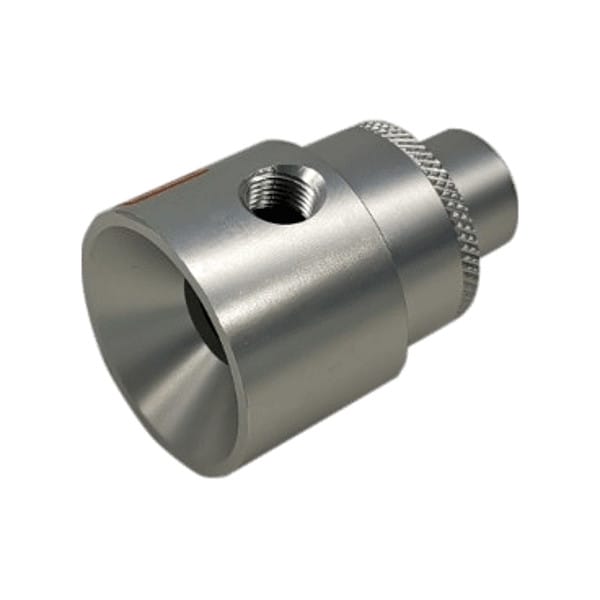

Air Amplifier
Mfr # 40000
Zoro # G511471228
Free Shipping & Returns
$129.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Amplification Ratio 10
- Discharge Dia. 3/4 in
- Overall Length 2 1/4 in
- Body Material Finish Anodized
- Flow Pattern Width at 12 Inches 4 3/16 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Nex Flow
- MFR # 40000
- Zoro # G511471228
- UPC # 849169010693
- Country of Origin Canada
- Category Air Amplifiers
Dimensions
Discharge Dia. | 3/4 in |
Overall Length | 2 1/4 in |
Flow Pattern Width at 12 Inches | 4 3/16 in |
Inlet Diameter | 1 1/2 in |
Inlet Size | 1/8 in |
Flow Pattern Width at 6 Inches | 2 3/8 in |
Overall Width | 1 1/2 in |
Flow Pattern Width at 18 Inches | 6 in |
Overall Height | 1 1/2 in |
Details
Item | Air Amplifier |
Amplification Ratio | 10 |
Body Material Finish | Anodized |
Air Consumption | 9.2 scfm |
System of Measurement | Inch |
Product Type | Air Amplifier Only |
Air Inlet Type | NPT |
Air Output Volume @ 80 psi | 89 scfm |
Output Type | Adjustable |
Maximum Operating Pressure | 120 psi |
Body Material | Aluminum |
Minimum Operating Pressure | 20 psi |
For Fluid Type | Compressed Air |
Maximum Sound Level | 78 dBA |
Description
Air Amplifier, Amplification Ratio 10, Inlet Size 1/8 in, Air Inlet Type NPT, Inlet Diameter 1 1/2 in, Discharge Dia. 3/4 in, Maximum Sound Level 78 dBA, Body Material Aluminum, Air Consumption 9.2 scfm, Air Output Volume @ 80 psi 89 scfm, Output Type Adjustable, Includes Filter Separator Not Applicable, Includes Pressure Regulator Not Applicable, Includes Shims Not Applicable, Body Material Finish Anodized, System of Measurement Inch, Overall Length 2 1/4 in, Maximum Operating Pressure 120 psi
