Mvp Master Ram Series

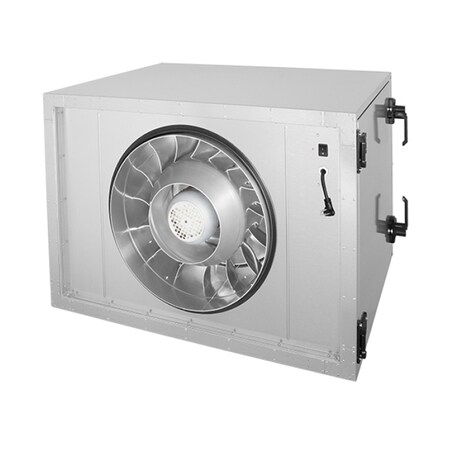

20" 240V Acf Fan For Air Filtering

product price: $3,619.99
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • For Use With Filtered Air Movement
  • Voltage 240V
  • Standards Conforms to: ANSI/UL Std. 507 and Certified to: CAN/CSA Std. C22.2.ISO 5801
  • Material Steel Housing and Impeller
  • Height 27.33"
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 27.33"
Length 41.87"
Width 24.69"

Details

For Use With Filtered Air Movement
Voltage 240V
Standards Conforms to: ANSI/UL Std. 507 and Certified to: CAN/CSA Std. C22.2.ISO 5801
Material Steel Housing and Impeller
Features Can Attach up to 20 Filters
Phase Single
Hertz 60Hz
Speed Control Single
Motor Enclosure IP54
Max Watts 1127W
Number of Speeds Single
Max. Inlet Temp. 40 Degrees C/104 Degrees F
Max Amps 4.7A
CFM @ 1.125-In. SP 2272
CFM @ 0.000-In. SP 3500

Description

Steel Housing and Impeller, Fits up to 20 filters, Voltage: 240V, Phase: Single, Hertz: 60Hz, Max Wattage: 1127, Max Amps: 4.7A, Number of Speeds: 1, CFM at Operating Point: 3/ 2272 cfm @ 1.13 in. Wg, 5/ 3500 cfm @ 0.0 in. Wg, Watts/Amps at Operating Point 3: 1025W/4.3A, Motor RPM at Operating Point: 3/ 1561, 5/ 1540, Housing Dimentions: 41.87" x 27.33" x 32.56", Max Inlet Temp: 40c / 104f, Speed Control: Single, Motor Enclosure: IP54

Documents & Resources

Restrictions

  • Circle E logo Meets U.S. Federal minimum energy-efficiency standards (Circle E).
