Murrelektronik

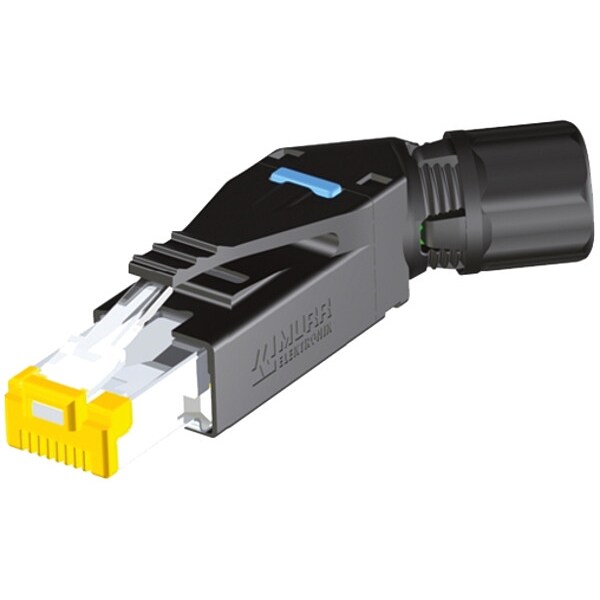

Connector, Male, 1.76A, Plastic, 60V

product price: $53.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wire Size 26 AWG to 22 AWG
  • Voltage Rating 60V DC
  • Number of Poles 8
  • Performance Category Cat6
  • Data Rate 10,000 MBps
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Size 26 AWG to 22 AWG
Cable Diameter 4.5 to 9 mm

Details

Item Connector
Voltage Rating 60V DC
Number of Poles 8
Performance Category Cat6
Data Rate 10,000 MBps
Application Data, EtherCat, Ethernet/IP
Connector Orientation 45 Degrees Angled
IP Rating IP20
Connector Gender Male
Housing Material Plastic
Connection Type Insulation Displacement
Minimum Operating Temperature -40 Degrees C
Shielded Yes
Standards cURus Approval
Current Rating 1.76 A

Description

Connector, Application Data, EtherCat, Ethernet/IP, Cable Diameter 4.5 to 9 mm, Connection Type Insulation Displacement, Connector Gender Male, Connector Orientation 45 Degrees Angled, Current Rating 1.76 A, Data Rate 10,000 MBps, Housing Material Plastic, IP Rating IP20, Maximum Operating Temperature 70 Degrees C, Minimum Operating Temperature -40 Degrees C, Mounting Type Cable, Number of Poles 8, Performance Category Cat6, Shielded Yes, Standards cURus Approval, Voltage Rating 60V DC
