Shop All Surge Protectors
Moxa
Surge Prtctr Data Line Surge Prtctr Indst Surge Prtctr, Isd-1110-T
Mfr # ISD-1110-T
Zoro # G4582578
product price: $79.99
/ea
Free Shipping & Returns
$79.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Length 2.01 in
- Depth 0.81 in
- Width 1.46 in
- Ambient Relative Humidity 95% max, non-condensing
- BandWidth 10 MHz loss < 1 dB
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Moxa
- MFR # ISD-1110-T
- Zoro # G4582578
- Country of Origin Taiwan, Province of China
- Category Surge Protectors
Dimensions
Length | 2.01 in |
Depth | 0.81 in |
Width | 1.46 in |
BandWidth | 10 MHz loss < 1 dB |
Details
Item | Surge Protector |
Ambient Relative Humidity | 95% max, non-condensing |

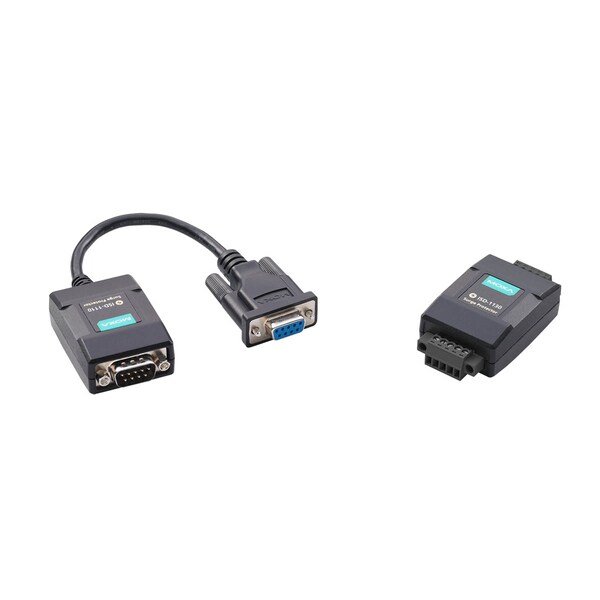

ISD-1110-T | Data in: DB9 male; Data out: DB9 female |
Response Time | < 1 ns |
Maximum Power Protection | 400 watts |
Protection Mode | Line to line, line to ground |
Working Voltage | ISD-1110-T: 15 V; ISD-1130-T: 5 V |
Operating temperature | -40 to 85°C (-40 to 185°F) |
Storage temperature | -40 to 85°C (-40 to 185°F) |
ISD-1130-T | Data in: Terminal block; Data out: Terminal block |
Surge Capacity | 4 kV, 8/20ÎĽs impulse per line |
Housing | Plastic |
Altitude | Up to 2000 m |
Protection Rating | IP30 |
EMS | EN 61000-4-5 Level 4 (4 kV)) |
Number of Protected Lines | ISD-1110-T: 7; ISD-1130-T: 4 |
Maximum Load Current | ISD-1110-T: 0.1 A (23°C), 0.05 A (85°C); ISD-1130-T: 0.12 A (23°C), 0.07 A (85°C) |
Description
Surge Protector Data Line Surge Protector industrial Surge Protector Device
