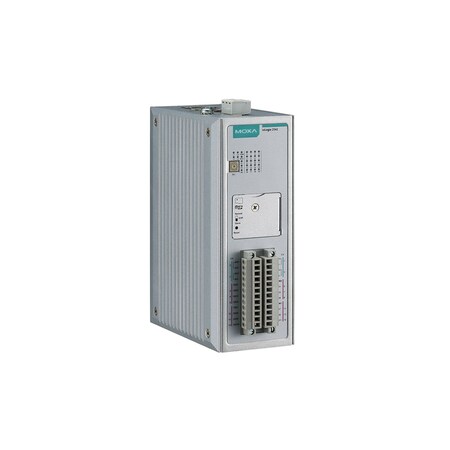

Smart Remote I/O W/ 4 Ais, 12 Dios, -40 To 75°C, Iologik 2542-T

Mfr # ioLogik 2542-T
Zoro # G4573959

$1,134.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Mounting DIN rail, wall
Serial Ports 2, RJ45, 3-in-1 interface
Over-current Protection 1.5 A per channel @ 25°C
Configurable DI/Os 12 channels
Flow Control None, RTS/CTS

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Moxa
MFR # ioLogik 2542-T
Zoro # G4573959
Country of Origin Taiwan, Province of China
Category Programmable Logic Controllers

Details

Mounting	DIN rail, wall
Serial Ports	2, RJ45, 3-in-1 interface
Over-current Protection	1.5 A per channel @ 25°C
Configurable DI/Os	12 channels
Flow Control	None, RTS/CTS
Ambient Relative Humidity	5 to 95% (non-condensing)
Stop Bits	1, 1.5, 2
Isolation	3k VDC or 2k Vrms
Current Rating	500 mA per channel @ 25°C
Safety	UL 508, EN 60950-1, NCC
Counter Frequency	2.5 kHz
Serial Line Protection	≥ 8 kV ESD for all signals
Storage temperature	-40 to 85°C (-40 to 185°F)
Digital Filtering Time Interval	Software configurable
Wet Contact (DI to COM)	On: 10 to 30 VDC; Off: 0 to 3 VDC
Input Leakage Current	< 1 mA (@ 30 VDC)
Sensor Type	Wet Contact (NPN or PNP) and Dry Contact
Parity	None, Odd, Even
Sampling Rate	All channels: 400 samples/sec; Per channel: 100 samples/sec
Type	Sink, Differential input
Analog Inputs	4 channels
Operating temperature	Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Freefall	IEC 60068-2-32
EMS	EN 55024, EN 61000-4-2, EN 61000-4-3,EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11, EN 61000-6-2
Protocol	Modbus/RTU
Shock	IEC 60068-2-27
EMI	EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A
Resolution	16 bits
Altitude	Up to 2000 m
Ethernet	4 switched 10/100 Mbps RJ45 ports; 1 optimized port for faster downstream communications with daisy-chained ioLogik E1200 units
Dry Contact	On: short to GND; Off: open
Protection	1.5 kV magnetic isolation
Radio	FCC Part 22H, FCC Part 24E,EN 301 489-1, EN 301 489-7, EN 301 511
Accuracy	±0.1% FSR @ 25°C; ±0.3% FSR @ -10 and 60°C; ±0.5% FSR @ -40 and 75°C
Over-temperature Shutdown	175°C (min.)
Input Range	±10 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA (with burn-out detection)
Vibration	IEC 60068-2-6
Expansion Slot	Up to 32 GB microSD™ memory card (SDHC compatible)
Input Impedance	> 1M ohms (min.)
Common Type	6 points per COM
Protocols	Modbus/RTU (master), serial tunnel mode (client/server), Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP
Baudrate	1200 to 115200 bps
I/O Mode	DO or Pulse Output, Voltage / Current (software selectable), DI or Event Counter
Pulse Output Frequency	5 kHz
Data Bits	5, 6, 7, 8
Power Input	24 VDC nominal, 9 to 48 VDC
Wiring	I/O cable max. 14 AWG
Built-in Resistor for Current Input	120 ohms
Over-voltage Protection	45 VDC

Description

Smart Remote I/O with 4 AIs, 12 DIOs, -40 to 75°C
