Moxa

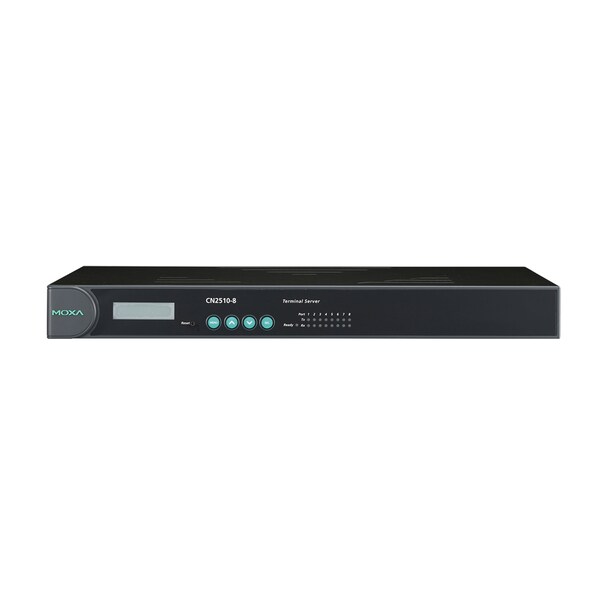

8Port Terminal Server, Single 10/100M Eth., Rs-232, Rj-45 8Pin, Cn2510-8

product price: $1,143.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Dimensions 440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in)
  • Management SNMP MIB-II
  • Console Port RS-232 interface, with 8-pin RJ45 connector
  • Network Protocols TCP/IP, UDP, ICMP, NetBUEI, DHCP, PPP, SLIP, CSLIP
  • Security Protocols RADIUS, Dialback, PAP, CHAP, Local user / password
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Dimensions 440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in)

Details

Management SNMP MIB-II
Console Port RS-232 interface, with 8-pin RJ45 connector
Network Protocols TCP/IP, UDP, ICMP, NetBUEI, DHCP, PPP, SLIP, CSLIP
Security Protocols RADIUS, Dialback, PAP, CHAP, Local user / password
Operating temperature 0 to 55°C (32 to 131°F), 5 to 95% RH
IP Routing Static, RIP-I, RIP-II
Flow Control RTS/CTS, XON/XOFF
Terminal Sessions 8 sessions per port
Safety UL: UL60950; TÜV: EN60950
Connectors for External Antenna 8-pin RJ45
Source of Input Power AC: 100 to 240V, 47 to 63 Hz; DC: ±48 VDC (38 to 72 VDC, -38 to -72 VDC)
Stop Bits 1, 1.5, 2
Number of Ports 1, 8 (CN2510-8) or 16 (CN2510-16)
Serial Line Protection Serial Line: 15 KV ESD for all signals; Power Line: 1 KV Burst (EFT), EN61000-4-4 0.5 KV Surge, EN61000-4-5
Power Consumption CN2510-8/16: 235 mA for 100V, 145 mA for 240V; CN2510-8/16-48V: 260 mA (at 48V max.)
Magnetic Isolation Protection Built-in 1.5 KV magnetic isolation
Parity None, Even, Odd, Space, Mark
Storage temperature -20 to 70°C (-4 to 158 °F), 5 to 95% RH
Data Bits 5, 6, 7, 8
EMC CE: EN55022 Class A / EN55024; FCC: FCC part 15 subpart B, Class A
Speed 10/100 Mbps

Description

8 port Terminal Server, single 10/100M Ethernet, RS-232, RJ-45 8pin, 100V or 240V
