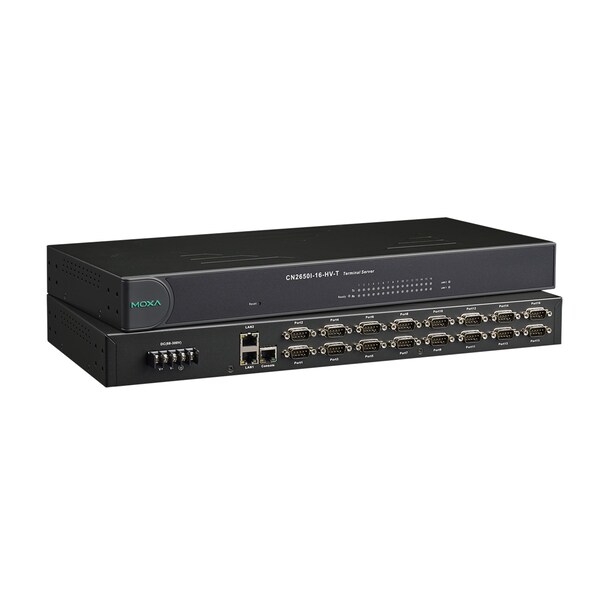

16Port Terminal Server, 3 In 1, Isolation, Dual 10/100M Ethernet

Mfr # CN2650I-16-HV-T
Zoro # G4572848

$3,544.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Security Protocols RADIUS, HTTPS, SSH, PAP, CHAP
RS-485 Data Direction Control ADDC® (Automatic Data Direction Control)
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
Console Port Dedicated RS-232 console port on rear panel (8-pin RJ45)
EMS EN 61000-4-2 ESD: contact 4 kV; air 8 kV; EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz); EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV; EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (HV models); Signal 1 kV; EN 61000-4-6 CS: 3 V; EN 61000-4-8; EN 61000-4-11: AC m

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Moxa
MFR # CN2650I-16-HV-T
Zoro # G4572848
Country of Origin Taiwan, Province of China
Category Terminal Servers

Dimensions

Without ears: 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in); With ears: 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)

Details

Security Protocols	RADIUS, HTTPS, SSH, PAP, CHAP
RS-485 Data Direction Control	ADDC® (Automatic Data Direction Control)
Linux Real TTY Drivers	Linux 2.4.x, 2.6.x, 3.x
Console Port	Dedicated RS-232 console port on rear panel (8-pin RJ45)
EMS	EN 61000-4-2 ESD: contact 4 kV; air 8 kV; EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz); EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV; EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (HV models); Signal 1 kV; EN 61000-4-6 CS: 3 V; EN 61000-4-8; EN 61000-4-11: AC m
Housing	Metal
Storage temperature	Standard Models: -40 to 75°C (-40 to 167°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F); High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Freefall	IEC-68-2-34, IEC-68-2-32
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Terminator for RS-485	120 Ω
RS-422	Tx+, Tx-, Rx+, Rx-, GND
Ambient Relative Humidity	5 to 95% (non-condensing)
Baudrate	50 bps to 921.6 kbps
Network Protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, ARP, PPPoE, DDNS
Input Voltage	AC Models: 100 to 240 VAC, 47 to 63 Hz; DC Models: 110 VDC (88 to 300 VDC)
Flow Control	RTS/CTS, DTR/DSR, XON/XOFF
EMC	55022/24
Power Line Protection	1 kV burst (EN 61000-4-4: EFT/B), 2 kV surge (EN 61000-4-5)
Safety	UL 60950-1, EN 60950-1
Configuration Options	Web Console, Serial Console, Telnet Console, Windows Search Utility
Data Bits	5, 6, 7, 8
Vibration	IEC-68-2-6
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
Altitude	Up to 2000 m
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Pull High/Low Resistor for RS-485	1 kΩ, 150 kΩ
Serial Line Protection	2 kV optical isolation (CN2650I)
EMI	EN 55022 Class A, FCC part 15 Subpart B Class A
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
Standard	Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM, Disabled
RS-485-2w	Data+, Data-, GND
Power Consumption	CN2650 AC models: 235 mA @ 100 VAC, 145 mA @ 240 VAC; CN2650I HV models: 152 mA @ 88 VDC, 86 mA @ 300 VDC
Alert Tools	Built-in buzzer and RTC (real-time clock)
MTBF (mean time between failures)	CN2650I AC models: 99,320 hrs; CN2650I-8-HV-T: 191,326 hrs; CN2650I-16-HV-T: 116,924 hrs
Number of Ports	8 or 16, 2 (2 IPs)
Serial Standards	CN2610: RS-232; CN2650/2650I: RS-232/422/485
Management	SNMP MIB-II
IP Routing	Static, RIP-I, RIP-II
Stop Bits	1, 1.5, 2
Terminal Sessions	8 sessions per port
Speed	10/100 Mbps, auto MDI/MDIX
Magnetic Isolation	1.5 kV built-in
Parity	None, Even, Odd, Space, Mark
Connector	8-pin RJ45, CN2610/2650: 8-pin RJ45; CN2650I: DB9 male
Operating temperature	Standard Models: 0 to 55°C (32 to 131°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F); High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Description

16 Port Terminal Server, 3 in 1, Isolation, Dual 10/100M Ethernet, 88-300 VDC, -40 to 85°C

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
