Shop All Terminal Block Accessories
Molex

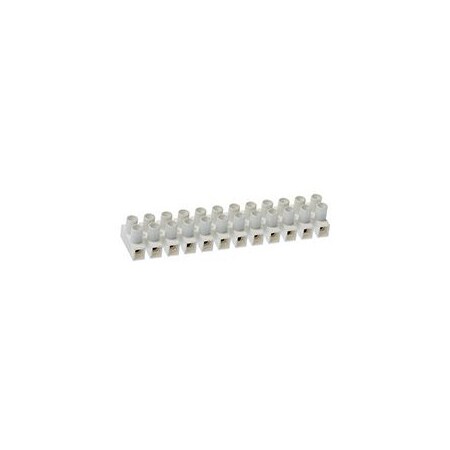

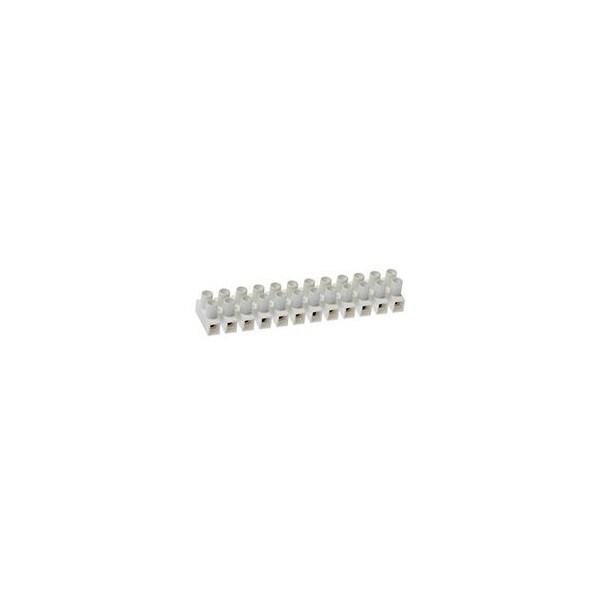

TERM STRIP 8MM LOW PROF 10 CIR WHT
Mfr # 39100-1910
Zoro # G700440271
product price: $3.65
/ea
Sold in multiples of 25 for $91.25
$91.25
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color - Resin White
- PCB Retention Yes
- Orientation Vertical
- Material - Resin Nylon
- Wire Size AWG 12, 14, 16, 18, 20, 22
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 39100-1910
- Zoro # G700440271
- Country of Origin China
- Category Terminal Block Accessories
Dimensions
Wire Size AWG | 12, 14, 16, 18, 20, 22 |
Details
Color - Resin | White |
PCB Retention | Yes |
Orientation | Vertical |
Material - Resin | Nylon |
Number of Rows | 2 |
Temperature Range - Operating | -40° to +105°C |
Polarized to Mating Part | No |
Circuits (maximum) | 10 |
Pitch - Termination Interface | 8.00mm |
Panel Mount | Mounting Holes Between Circuit |
Entry Angle | Horizontal |
Pitch - Mating Interface | 8.00mm |
Circuits (Loaded) | 10 |
Voltage - Maximum | 300V |
Material - Metal | Stainless Steel |
Current - Maximum per Contact | 20.0A |
