Shop All Terminal Block Accessories
Molex

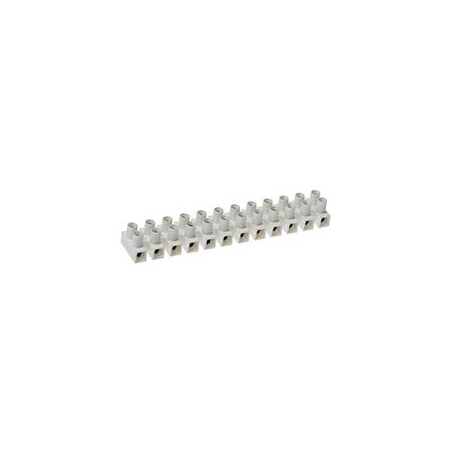

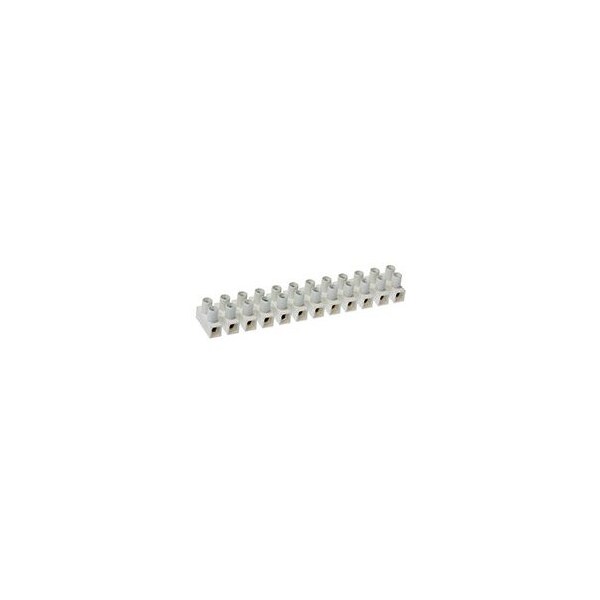

TERM STRIP 12MM LOW PROF 12 CIR WHT
Mfr # 39100-2312
Zoro # G000440315
product price: $5.75
/ea
Sold in multiples of 20 for $115.00
$115.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material - Resin Nylon
- Color - Resin White
- Entry Angle Horizontal
- Circuits (Loaded) 12
- Pitch - Mating Interface 12.00mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 39100-2312
- Zoro # G000440315
- Country of Origin China
- Category Terminal Block Accessories
Dimensions
Wire Size AWG | 10, 12, 14, 16, 18, 20, 8 |
Details
Material - Resin | Nylon |
Color - Resin | White |
Entry Angle | Horizontal |
Circuits (Loaded) | 12 |
Pitch - Mating Interface | 12.00mm |
Material - Metal | Stainless Steel |
Orientation | Vertical |
Panel Mount | Mounting Holes Between Circuit |
Number of Rows | 2 |
Voltage - Maximum | 300V |
Current - Maximum per Contact | 40.0A |
PCB Retention | Yes |
Polarized to Mating Part | No |
Pitch - Termination Interface | 12.00mm |
Circuits (maximum) | 12 |
Temperature Range - Operating | -40° to +105°C |
