  9. Squba 3.6 M-S 300Mm 16 Awg Leads Bk Sn
Shop All High Temperature Lead Wire
Molex

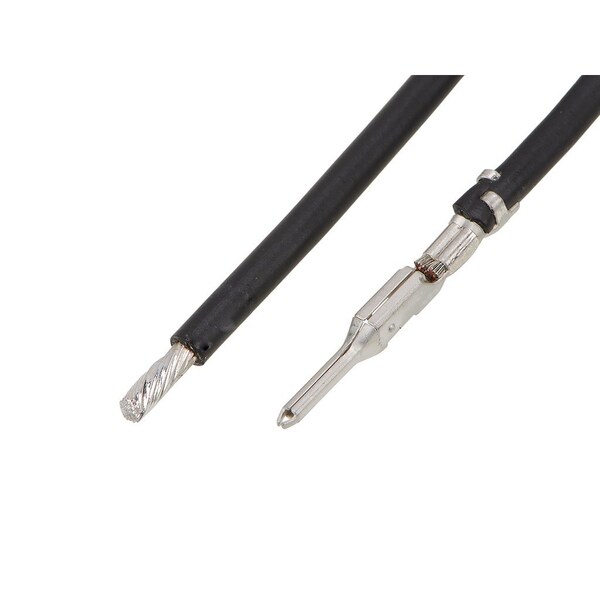

Squba 3.6 M-S 300Mm 16 Awg Leads Bk Sn

product price: $1.89
/ea
Sold in multiples of 1500 for $2,835.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 215348
  • Termination Interface Style Crimp or Compression
  • Circuits (Loaded) 1
  • Connector to Connector Squba-to-Pigtail
  • Number of Rows 1
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Insulation Diameter 1.90mm-2.40mm
Wire Size (AWG) 16
Cable Length 300.00mm

Details

Series 215348
Termination Interface Style Crimp or Compression
Circuits (Loaded) 1
Connector to Connector Squba-to-Pigtail
Number of Rows 1
Current - Maximum per Contact 14.0A
Single Ended Yes
Wire/Cable Type UL 11028
Material - Resin Modified Polystyrene
Material - Metal Copper Alloy
Material - Plating Mating Matte Tin
Voltage - Maximum 600V
Color - Resin Black
Product Name Squba
Pitch - Mating Interface 3.60mm
Assembly Configuration Pre-crimped Lead Only
Gender Male-Pigtail
Plating min - Mating 2.540µm
Lock to Mating Part Yes
