Shop All High Temperature Lead Wire
Molex

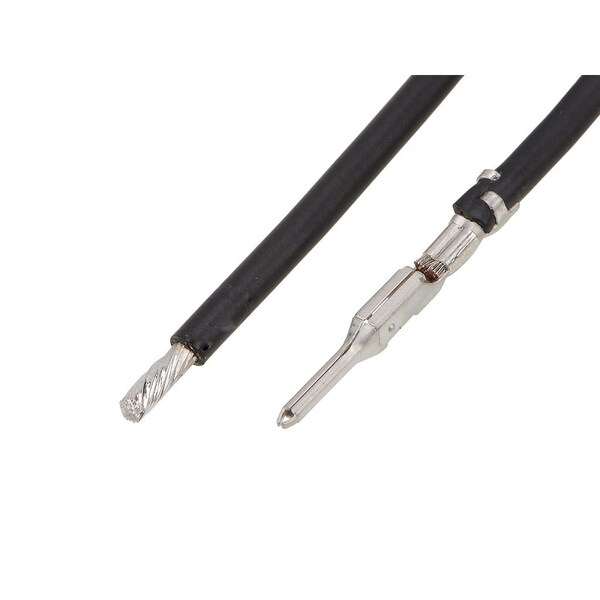

Squba 3.6 M-S 150Mm 16 Awg Leads Bk Sn
Mfr # 2153481122
Zoro # G305922301
Sold in multiples of 1500 for $2,085.00
$2,085.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 215348
- Pitch - Mating Interface 3.60mm
- Color - Resin Black
- Material - Plating Mating Matte Tin
- Product Name Squba
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2153481122
- Zoro # G305922301
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
Wire Size (AWG) | 16 |
Wire Insulation Diameter | 1.90mm-2.40mm |
Cable Length | 150.00mm |
Details
Series | 215348 |
Pitch - Mating Interface | 3.60mm |
Color - Resin | Black |
Material - Plating Mating | Matte Tin |
Product Name | Squba |
Plating min - Mating | 2.540µm |
Number of Rows | 1 |
Material - Resin | Modified Polystyrene |
Connector to Connector | Squba-to-Pigtail |
Circuits (Loaded) | 1 |
Material - Metal | Copper Alloy |
Assembly Configuration | Pre-crimped Lead Only |
Gender | Male-Pigtail |
Lock to Mating Part | Yes |
Current - Maximum per Contact | 14.0A |
Termination Interface Style | Crimp or Compression |
Voltage - Maximum | 600V |
Wire/Cable Type | UL 11028 |
Single Ended | Yes |
