Shop All High Temperature Lead Wire
Molex

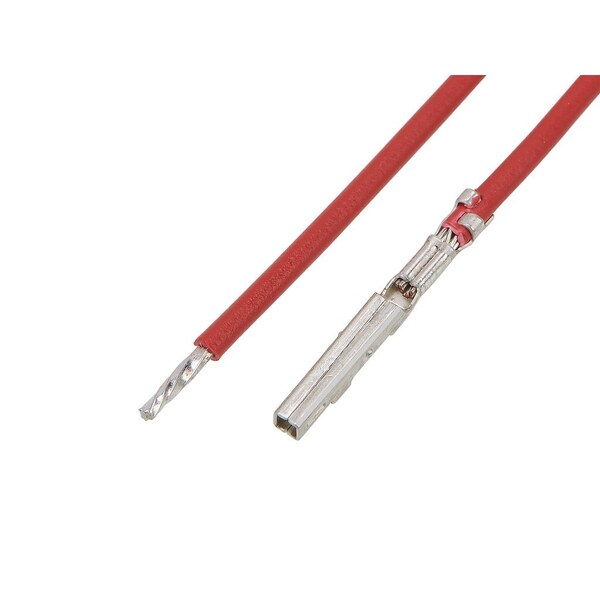

Squba 3.6 F-S 300Mm 20 Awg Leads Rd Sn
Mfr # 2153462104
Zoro # G505922453
Sold in multiples of 1500 for $1,725.00
$1,725.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 215346
- Material - Plating Mating Matte Tin
- Voltage - Maximum 600V
- Cable Length 300.00mm
- Wire Insulation Diameter 1.90mm-2.40mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2153462104
- Zoro # G505922453
- Country of Origin Viet Nam
- Category High Temperature Lead Wire
Dimensions
Cable Length | 300.00mm |
Wire Insulation Diameter | 1.90mm-2.40mm |
Wire Size (AWG) | 20 |
Details
Series | 215346 |
Material - Plating Mating | Matte Tin |
Voltage - Maximum | 600V |
Pitch - Mating Interface | 3.60mm |
Gender | Female-Pigtail |
Termination Interface Style | Crimp or Compression |
Assembly Configuration | Pre-crimped Lead Only |
Current - Maximum per Contact | 9.0A |
Color - Resin | Red |
Number of Rows | 1 |
Lock to Mating Part | Yes |
Material - Metal | Copper Alloy |
Wire/Cable Type | UL 11028 |
Circuits (Loaded) | 1 |
Material - Resin | Modified Polystyrene |
Single Ended | Yes |
Plating min - Mating | 2.540µm |
Product Name | Squba |
Connector to Connector | Squba-to-Pigtail |
