  9. Squba 3.6 F-S 300Mm 18 Awg Leads Bk Sn
Shop All High Temperature Lead Wire
Molex

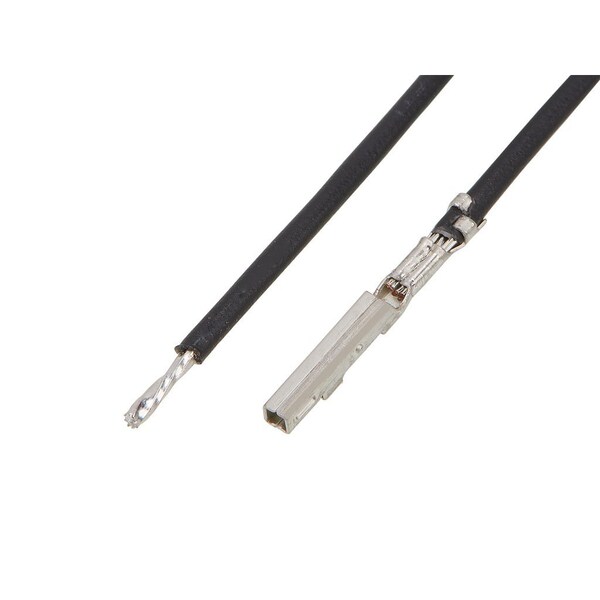

Squba 3.6 F-S 300Mm 18 Awg Leads Bk Sn

product price: $1.35
/ea
Sold in multiples of 1500 for $2,025.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 215346
  • Current - Maximum per Contact 11.5A
  • Wire Size (AWG) 18
  • Connector to Connector Squba-to-Pigtail
  • Material - Resin Modified Polystyrene
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Size (AWG) 18
Cable Length 300.00mm
Wire Insulation Diameter 1.90mm-2.40mm

Details

Series 215346
Current - Maximum per Contact 11.5A
Connector to Connector Squba-to-Pigtail
Material - Resin Modified Polystyrene
Gender Female-Pigtail
Material - Plating Mating Matte Tin
Lock to Mating Part Yes
Material - Metal Copper Alloy
Single Ended Yes
Number of Rows 1
Assembly Configuration Pre-crimped Lead Only
Wire/Cable Type UL 11028
Pitch - Mating Interface 3.60mm
Color - Resin Black
Product Name Squba
Voltage - Maximum 600V
Plating min - Mating 2.540µm
Circuits (Loaded) 1
Termination Interface Style Crimp or Compression
