  9. Squba 3.6 F-S 225Mm 18 Awg Leads Bk Sn
Shop All High Temperature Lead Wire
Molex

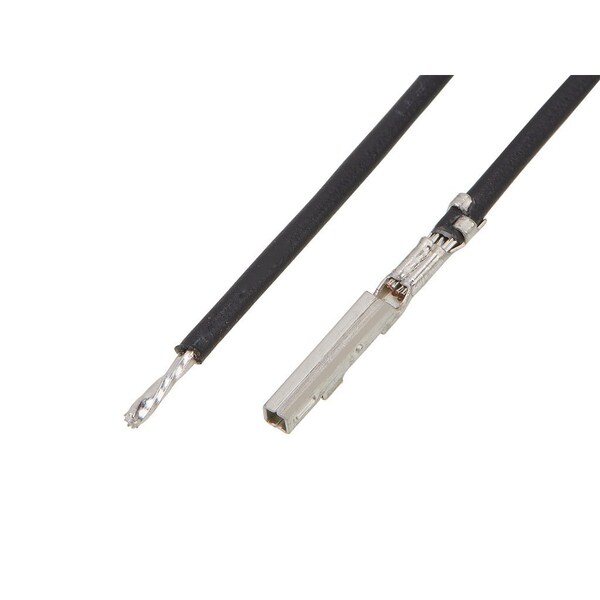

Squba 3.6 F-S 225Mm 18 Awg Leads Bk Sn

product price: $1.19
/ea
Sold in multiples of 1500 for $1,785.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 215346
  • Lock to Mating Part Yes
  • Material - Resin Modified Polystyrene
  • Assembly Configuration Pre-crimped Lead Only
  • Single Ended Yes
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Insulation Diameter 1.90mm-2.40mm
Cable Length 225.00mm
Wire Size (AWG) 18

Details

Series 215346
Lock to Mating Part Yes
Material - Resin Modified Polystyrene
Assembly Configuration Pre-crimped Lead Only
Single Ended Yes
Material - Plating Mating Matte Tin
Connector to Connector Squba-to-Pigtail
Pitch - Mating Interface 3.60mm
Plating min - Mating 2.540µm
Gender Female-Pigtail
Wire/Cable Type UL 11028
Number of Rows 1
Circuits (Loaded) 1
Product Name Squba
Material - Metal Copper Alloy
Current - Maximum per Contact 11.5A
Color - Resin Black
Termination Interface Style Crimp or Compression
Voltage - Maximum 600V
