Shop All High Temperature Lead Wire
Molex

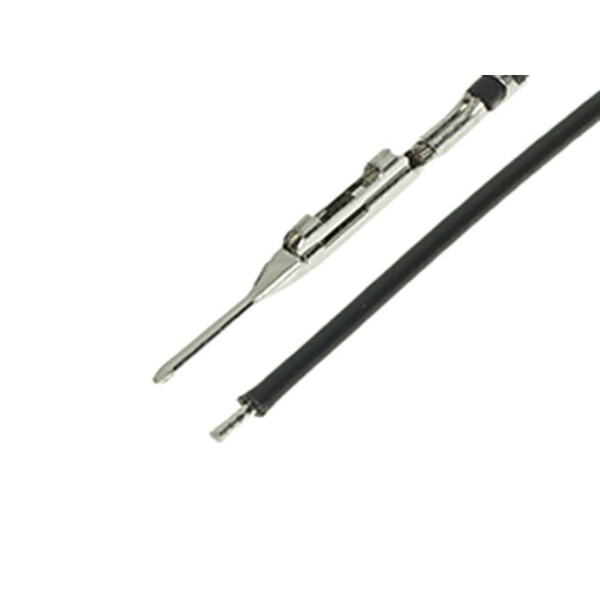

Squba 1.8 M-S 300Mm 22 Awg Leads Bk Sn
Mfr # 2177931124
Zoro # G005922588
Sold in multiples of 1500 for $1,485.00
$1,485.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 217793
- Current - Maximum per Contact 6.0A
- Wire Size (AWG) 22
- Color - Resin Black
- Material - Resin PVC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2177931124
- Zoro # G005922588
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
Wire Size (AWG) | 22 |
Cable Length | 300.00mm |
Wire Insulation Diameter | 0.95mm-1.40mm |
Details
Series | 217793 |
Current - Maximum per Contact | 6.0A |
Color - Resin | Black |
Material - Resin | PVC |
Connector to Connector | Squba Crimp Terminals |
Lock to Mating Part | Yes |
Material - Metal | Copper Alloy |
Gender | Male-Pigtail |
Material - Plating Mating | Tin |
Termination Interface Style | Crimp or Compression |
Circuits (Loaded) | 1 |
Material - Plating Termination | Tin |
Voltage - Maximum | 125V |
Number of Rows | 1 |
Product Name | Squba |
Wire/Cable Type | UL 10002 |
Single Ended | Yes |
Assembly Configuration | Pre-crimped Lead Only |
