Molex

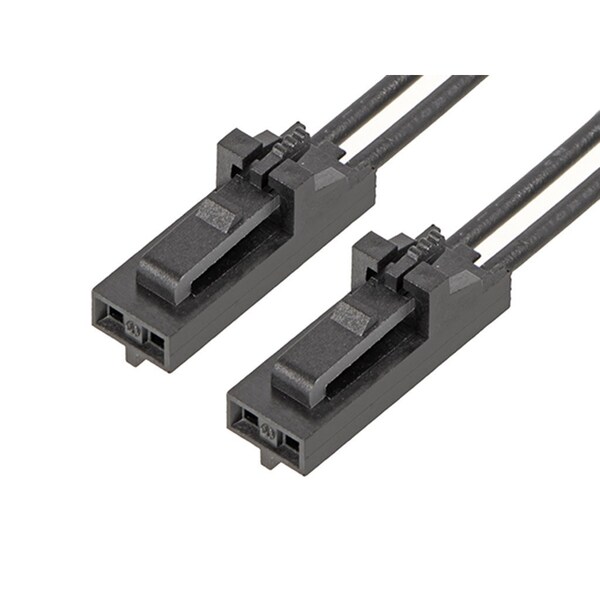

Sl Positive Lock R-R 2Ckt 600Mm Sn
Mfr # 2162701024
Zoro # G205925938
Sold in multiples of 975 for $3,110.25
$3,110.25
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cable Length 600.00mm
- Material - Plating Termination Tin
- Pitch - Mating Interface 2.54mm
- Gender Female-Female
- Number of Rows 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2162701024
- Zoro # G205925938
- Country of Origin China
- Category Communication Cables
Dimensions
Cable Length | 600.00mm |
Wire Size AWG | 22 |
Wire Insulation Diameter | 1.63mm max. |
Details
Material - Plating Termination | Tin |
Pitch - Mating Interface | 2.54mm |
Gender | Female-Female |
Number of Rows | 1 |
Circuits (Loaded) | 2 |
Lock to Mating Part | Yes |
Color - Resin | Black |
Termination Interface: Style | Crimp or Compression |
Material - Metal | Phosphor Bronze |
Current - Maximum per Contact | 3.0A |
Material - Resin | Polyester Alloy |
Material - Plating Mating | Tin |
Wire/Cable Type | UL 11028 |
Voltage - Maximum | 600V AC/DC |
