  11. S-ES insert 6p male Spring term
Shop All Terminal Block Accessories
Molex

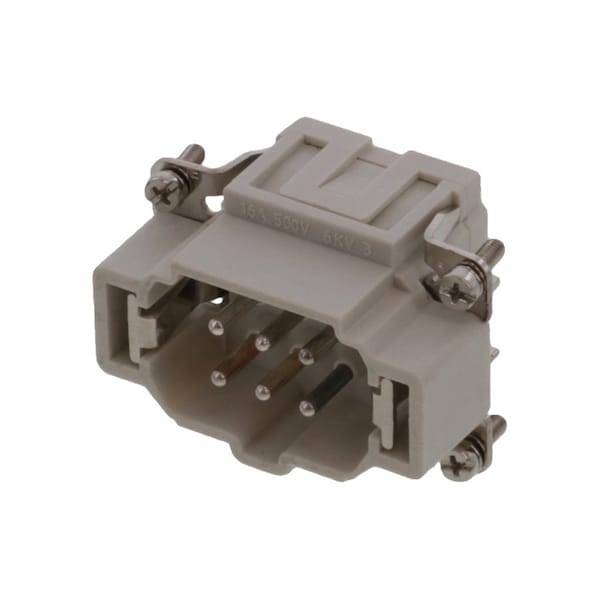

S-ES insert 6p male Spring term

product price: $17.15
/ea
Sold in multiples of 4 for $68.60
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temperature Range - Operating -40° to +125°C
  • Insert Color Grey
  • Durability (mating cycles max) 500
  • UL E249674
  • Poles 6
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Size AWG 14-26
Stripping Length 9.00-11.00mm
Wire Size mm² 0.14-2.50
Component Size 6B «44x27»

Details

Temperature Range - Operating -40° to +125°C
Insert Color Grey
Durability (mating cycles max) 500
UL E249674
Poles 6
Number of Rows 2
Flammability UL 94V-0
Voltage - Maximum 500V
Material - Insert Polycarbonate
Polarized to Mating Part Yes
Current - Maximum per Contact 16.0A
Material - Contact Copper Alloy
CSA 256883
Gender Male
Material - Plating Silver
Product Name GWconnect
Insert Series S-ES
Series 93601
Standard CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977
Component Type Inserts - Spring Terminal
