Molex

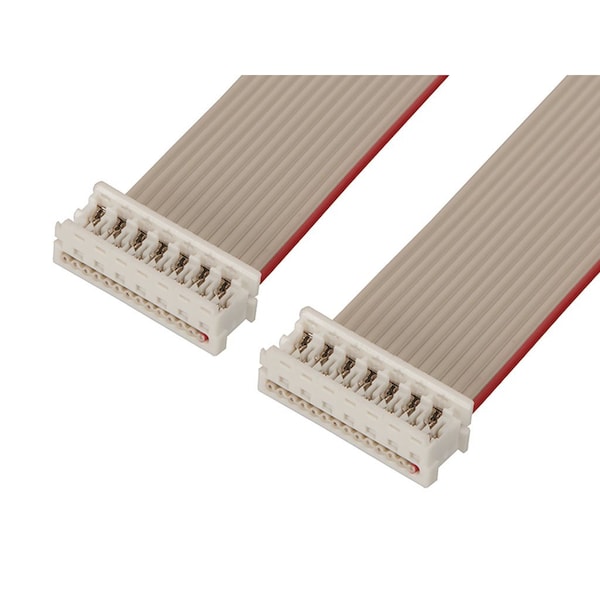

Ribbon Cables / Idc Cables 14Ckt Picoflex 80Mm Long
Mfr # 923151408
Zoro # G305924954
Sold in multiples of 50 for $89.50
$89.50
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Series 92315
- Cable Length 80.00mm
- Type Ribbon Cable Assembly
- Plating min - Mating 2.032µm
- Material - Resin Polyester
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 923151408
- Zoro # G305924954
- Country of Origin Poland
- Category Communication Cables
Dimensions
Cable Length | 80.00mm |
Wire Size AWG | 28 |
Details
Series | 92315 |
Type | Ribbon Cable Assembly |
Plating min - Mating | 2.032µm |
Material - Resin | Polyester |
Material - Metal | Phosphor Bronze |
Current - Maximum per Contact | 1.2A |
Voltage - Maximum | 250V |
Termination Interface: Style | IDT or Pierce |
Wire/Cable Type | PVC, Ribbon Cable |
Number of Rows | 2 |
Circuits (Loaded) | 14 |
Material - Plating Mating | Tin |
Pitch - Mating Interface | 1.27mm |
Material - Plating Termination | Tin |
Gender | Female-Female |
Plating min - Termination | 2.032µm |
Assembly Configuration | Dual Ended Connectors |
Product Name | Picoflex |
Single Ended | No |
Lock to Mating Part | None |
Connector to Connector | Picoflex IDT-to-IDT |
