  9. Rectangular Cable Assemblies Ultrafit 8Ckt Black 150Mm
Shop All Communication Cables
Molex

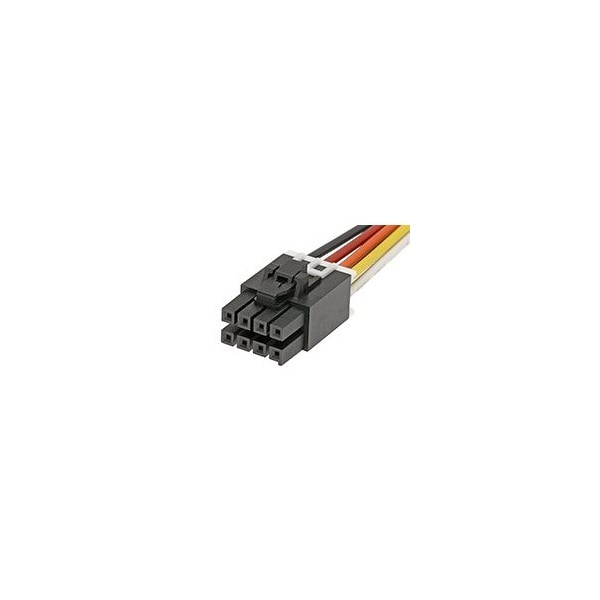

Rectangular Cable Assemblies Ultrafit 8Ckt Black 150Mm

product price: $4.55
/ea
Sold in multiples of 21 for $95.55
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Power, Wire-to-Board
  • Cable Length 150.00mm
  • Wire/Cable Type UL 1061
  • Plating min - Termination 1.524µm
  • Type Discrete Wire Assembly
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Insulation Diameter 2.35mm
Wire Size AWG 16

Details

Application Power, Wire-to-Board
Wire/Cable Type UL 1061
Plating min - Termination 1.524µm
Type Discrete Wire Assembly
Termination Interface: Style Crimp or Compression
Material - Plating Mating Tin over Nickel
Product Name Ultra-Fit OTS
Connector to Connector Ultra-Fit-to-Ultra-Fit
Pitch - Mating Interface 3.50mm
Material - Plating Termination Tin over Nickel
Material - Metal High Conductivity Copper
Series 45133
Plating min - Mating 1.524µm
Gender Female-Female
Material - Resin Nylon
Lock to Mating Part Yes
Assembly Configuration Dual Ended Connectors
Circuits (Loaded) 8
Voltage - Maximum 300V
Current - Maximum per Contact 11.0A
Color - Resin Black
