Molex

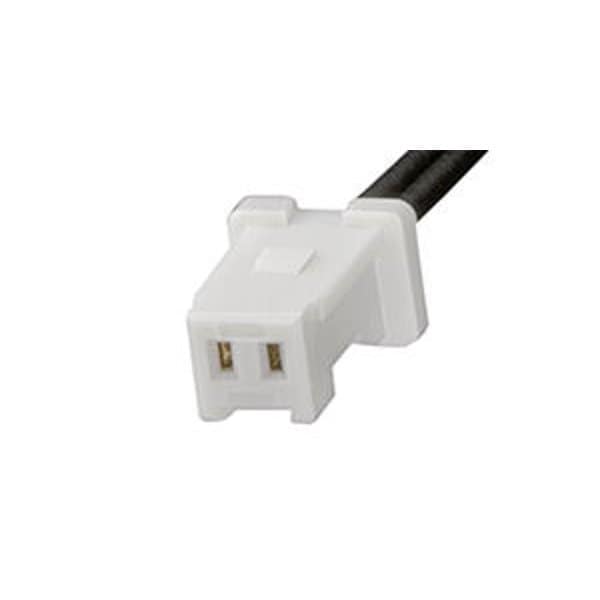

Rectangular Cable Assemblies Pico-Clasp 2Ckt Cbl Assy Sr 150Mm White
Mfr # 151330202
Zoro # G905925702
Sold in multiples of 2000 for $4,980.00
$4,980.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Cable Length 150.00mm
- Termination Interface: Style Crimp or Compression
- Wire Insulation Diameter 0.60mm
- Material - Plating Termination Tin
- Plating min - Mating 1.000µm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 151330202
- Zoro # G905925702
- Country of Origin China
- Category Communication Cables
Dimensions
Cable Length | 150.00mm |
Wire Insulation Diameter | 0.60mm |
Wire Size AWG | 28 |
Details
Termination Interface: Style | Crimp or Compression |
Material - Plating Termination | Tin |
Plating min - Mating | 1.000µm |
Color - Resin | White |
Material - Resin | Nylon |
Gender | Female-Female |
Current - Maximum per Contact | 1.0A |
Number of Rows | 1 |
Wire/Cable Type | UL 1571 |
Material - Plating Mating | Tin |
Voltage - Maximum | 50V AC (RMS)/DC |
Lock to Mating Part | Yes |
Pitch - Mating Interface | 1.00mm |
Plating min - Termination | 1.000µm |
Material - Metal | Phosphor Bronze |
Circuits (Loaded) | 2 |
