  9. Rectangular Cable Assemblies Mizup25 P-S 4Ckt 300Mm Sn
Shop All Communication Cables
Molex

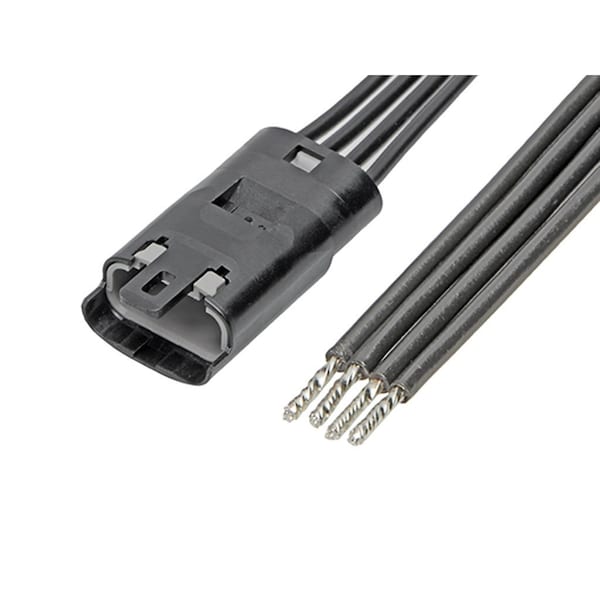

Rectangular Cable Assemblies Mizup25 P-S 4Ckt 300Mm Sn

product price: $6.15
/ea
Sold in multiples of 15 for $92.25
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 215313
  • Application Signal, Wire-to-Wire
  • Type Discrete Wire Assembly, Sealed Assembly
  • Cable Length 300.00mm
  • Material - Metal Phosphor Bronze
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Insulation Diameter 1.40-1.90mm
Wire Size AWG 20, 22

Details

Series 215313
Application Signal, Wire-to-Wire
Type Discrete Wire Assembly, Sealed Assembly
Material - Metal Phosphor Bronze
Voltage - Maximum 125V
Pitch - Mating Interface 2.50mm
Gender Male-Pigtail
Color - Resin Black
Current - Maximum per Contact 4.0A
Material - Plating Mating Tin
Wire/Cable Type PVC
Number of Rows 1
Circuits (Loaded) 4
Termination Interface: Style Crimp or Compression
Single Ended Yes
Lock to Mating Part Yes
Material - Resin Polyester
Product Name Mizu-P25 Waterproof
Assembly Configuration Single Ended Connector
Connector to Connector Mizu-P25-to-Pigtail
Overmolded No
