Molex

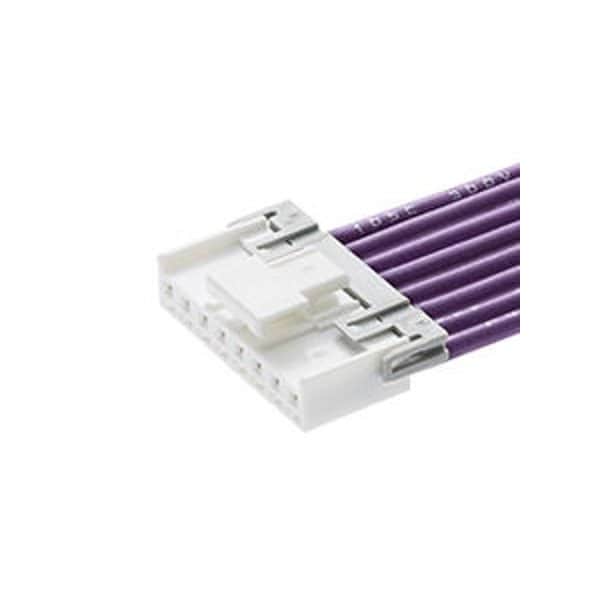

Rectangular Cable Assemblies Mini-Lock Cbl 2.5Mm P F-F 450Mm 7Ckts
Mfr # 151370705
Zoro # G905925818
Sold in multiples of 15 for $116.85
$116.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 15137
- Type Discrete Wire Assembly
- Application Signal, Wire-to-Board
- Cable Length 450.00mm
- Voltage - Maximum 250V AC (RMS)/DC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 151370705
- Zoro # G905925818
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 450.00mm |
Wire Size AWG | 22 |
Details
Series | 15137 |
Type | Discrete Wire Assembly |
Application | Signal, Wire-to-Board |
Voltage - Maximum | 250V AC (RMS)/DC |
Gender | Female-Female |
Pitch - Mating Interface | 2.50mm |
Termination Interface: Style | Crimp or Compression |
Wire/Cable Type | UL 1061 |
Material - Metal | Copper Alloy |
Material - Plating Termination | Matte Tin |
Material - Plating Mating | Matte Tin |
Material - Resin | Polyester |
Circuits (Loaded) | 7 |
Plating min - Mating | 0.889µm |
Number of Rows | 1 |
Color - Resin | Natural |
Product Name | Mini-Lock |
Connector to Connector | Mini-Lock-to-Mini-Lock |
Overmolded | No |
Assembly Configuration | Dual Ended Connectors |
Single Ended | No |
Current - Maximum per Contact | 3.5A |
