Molex

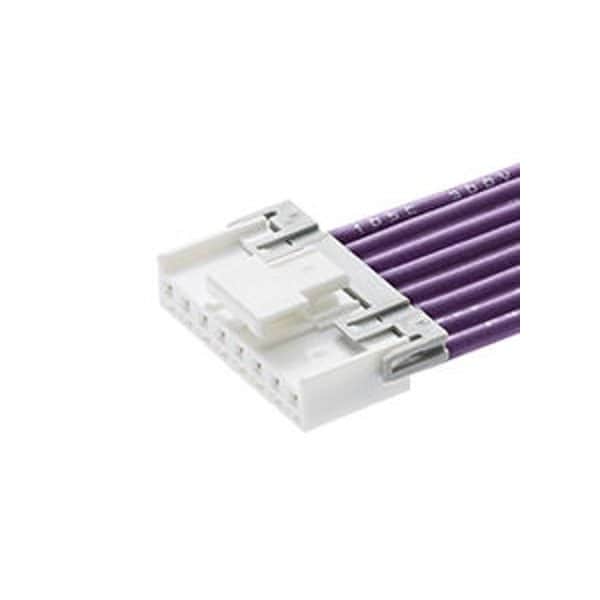

Rectangular Cable Assemblies Mini-Lock Cbl 2.5Mm P F-F 150Mm 7Ckts

product price: $5.29
/ea
Sold in multiples of 20 for $105.80
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 15137
  • Application Signal, Wire-to-Board
  • Cable Length 150.00mm
  • Type Discrete Wire Assembly
  • Pitch - Mating Interface 2.50mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Size AWG 22

Details

Series 15137
Application Signal, Wire-to-Board
Type Discrete Wire Assembly
Pitch - Mating Interface 2.50mm
Gender Female-Female
Number of Rows 1
Material - Plating Termination Matte Tin
Material - Plating Mating Matte Tin
Wire/Cable Type UL 1061
Material - Metal Copper Alloy
Color - Resin Natural
Material - Resin Polyester
Circuits (Loaded) 7
Voltage - Maximum 250V AC (RMS)/DC
Plating min - Mating 0.889µm
Termination Interface: Style Crimp or Compression
Product Name Mini-Lock
Overmolded No
Connector to Connector Mini-Lock-to-Mini-Lock
Single Ended No
Assembly Configuration Dual Ended Connectors
Current - Maximum per Contact 3.5A
